1200 EC - UV Flood Lamp Systems

The Dymax 1200-EC Series delivers high-intensity UV/Visible light in a narrow, focused beam (1” × 6”), designed for applications that...

Liên hệ để biết giá

Tình trạng: Còn hàng Thương hiệu: Dymax

Mô tả sản phẩm

The Dymax 1200-EC Series delivers high-intensity UV/Visible light in a narrow, focused beam (1” × 6”), designed for applications that demand deep cures and tack-free finishes within short exposure times—typically 10 to 30 seconds. Emitting a broad-spectrum output with peak intensity in the UV-A range (320–390 nm), this system enables fast, reliable curing of UV adhesives, coatings, and inks.

With a compact curing beam, the 1200-EC is ideal for targeted linear curing, curing larger than ½ inch bond lines, or processing multiple parts arranged in trays or rows. Its design suits a wide range of UV applications such as bonding, potting, sealing, tacking, and encapsulating in sectors including automotive, electronics, optics, and medical devices.

The system consists of three core components:

A 400-watt metal halide UV bulb
A power supply
A precision-engineered reflector housing

Optional accessories such as UV shields, shutter assemblies, and lamp stands can be added at purchase or retrofitted later. For enhanced flexibility, the system supports both bench-top setups and conveyor-mounted integration into automated production environments.

Features

Extended Bulb Warranty: Each lamp is backed by a 2,000-hour bulb warranty, ensuring long service life and reduced maintenance costs.
Precision-Curved Beam: Delivers a focused 1” × 6” beam of high-intensity UV light for targeted, efficient curing.
Fast, Tack-Free Results: Achieves complete cures in just 10–30 seconds, enhancing throughput and quality.
Durable Construction: Housed in rugged brushed-aluminum, built to withstand demanding production environments.
Optimized for Small Parts: Perfect for curing trays of miniature components or parts aligned in linear configurations.
Flexible Mounting Options: Supports both conveyor integration and stand-alone benchtop use, depending on your workflow.

Specifications:

Output power	400 Watts
UV light source	Unfiltered full spectrum UV focused beam light
Typical intensity in the UVA range (320-390 nm)	350 mW/cm²
Dimensions of illuminated area	1 in x 6 in [2.5 cm x 15.2 cm]
EC input power requirements	Universal 90-265 VAC (grounded), 47-63 Hz
Power supply weight	12.25 lbs. [5.6 kg]
Power supply dimensions (approximate L x W x H)	12 in x 16 in x 4.25 in [30.5 cm x 40.6 cm x 10.8 cm]

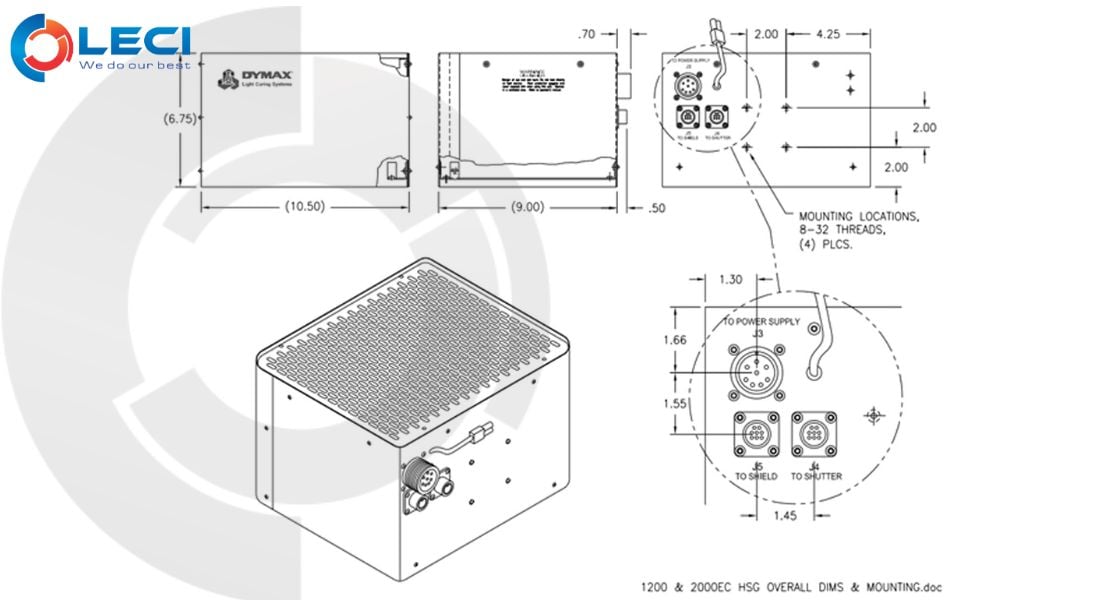

Housing dimensions (approximate L x W x H)	9 in x 10.5 in x 7.5 in [22.9 cm x 26.7 cm x 19.1 cm]
Housing weight	3.4 lbs [1.5 kg]
Operating Environment	10-40°C 0-80% non-condensing
