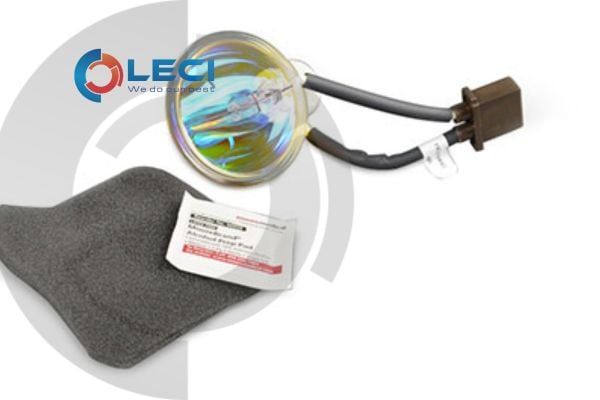

The Dymax 38465 is a 200-watt UV bulb and reflector assembly specifically designed for the BlueWave 200 spot curing system. This integrated component delivers high-intensity UV output with precise beam focus, ensuring fast and reliable curing for adhesives, coatings, and encapsulants in critical applications such as electronics, medical devices, and industrial manufacturing.
Specifications
- Product name: Dymax 38465 UV Bulb & Reflector
- Power rating: 200 W
- Compatible system: Dymax BlueWave® 200
- Design: Integrated UV bulb and elliptical reflector assembly
- Irradiance (280–450 nm): ≥ 40 W/cm²
- UVA intensity (320–395 nm): ≥ 17 W/cm²
- Visible light output (400–450 nm): ≥ 17 W/cm²
- Focus type: Precision spot focus with uniform beam profile
- Operating life: Up to 2,000 hours under standard curing conditions
- Application: UV spot curing of adhesives, inks, coatings in electronics, optics, and medical manufacturing
- Installation: Plug-and-play replacement for BlueWave® 200 systems
We have available stock ready for fast delivery, with installation and replacement support provided.
