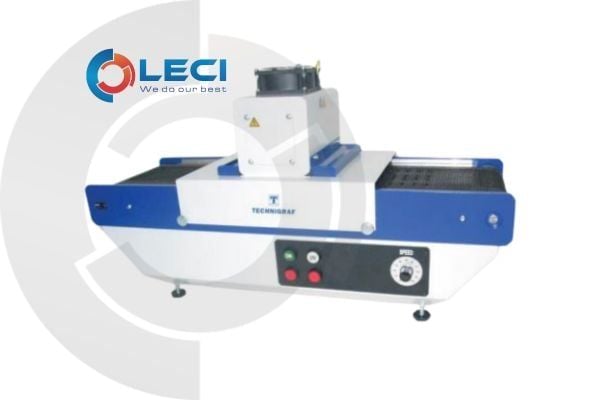

The extended version of the AKTIPRINT Mini/e table top dryer has more reserve capacity than the original AKTIPRINT Mini and can be used for continuous operation for a broad range of small format applications. Modern power electronics stabilize the continuously adjustable lamp output (up to 120 W/cm) against fluctuating line voltage and when using lamp types of differing spectral emission. This ensures consistent drying results.
| Power of UV tube | max. 120 W/cm |
| UV spectrum | | 200 – 400 nm (ozone free tube and special spectra on request) |
|
| Standard version | Ready to use, compact table unit with 1 UV tube, Hg.
Inclusive quartz glass pane.
Half focussing aluminium reflector.
Direct cooling of the reflector.
Material suction fan / belt suction.
Teflon coated, endless, glass fibre conveyor belt. |
| Features | Ozone exhaust not necessary.
High, stabilized and variable power of the UV tube up to 120 W/cm.
Improved cooling of material.
Useful for longer production operations. |
| Conveyor belt speed | 3-20 m/min., variable |
| Conveyor belt | Teflon coated, endless, glass fibre conveyor belt, black, antistatic |
| Conveyor belt width | Mini/e 12: 11 cm, Mini/e 18: 17 cm |
| Max. pass through width | approx. 22 cm |
| Max. curing width | | Mini/e 12: 6 cm, Mini/e 18: 10 cm |
|
| Tunnel height | 12 – 50 mm, easily manual adjustable |
| Colour | RAL 5002, blue and RAL 7035, grey |
| Manual instruction | German or English |
| Note | When increased tunnel height is used, ensure that max. light emission limit is not
exceeded! |
