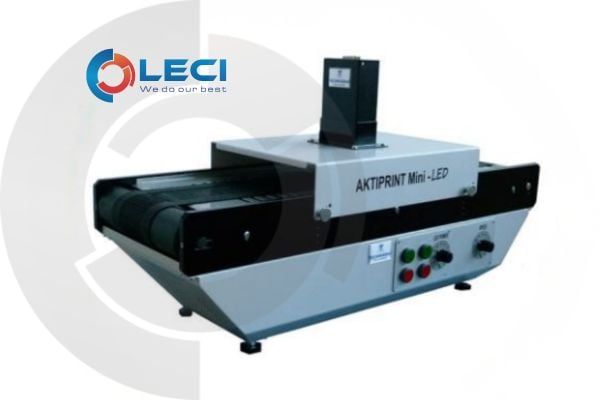

Compact UV table top dryer with Light Emitting Diodes (LED) 395 nm. For curing and hardening of UV sensitive LED inks and varnishes as well as adhesives. Ideal for tests, R & D or occasional small production runs on flat material and moulded parts of small size.
| UV LED wave length | 395 nm (other wave lengths on request) |
| UV LED power | max. 16 W/cm², infinitely variable |
| UV LED curing width | 8 or 12 cm respectively 16 cm |
| Standard version | Ready to use UV LED table unit, ozone free.
Teflon coated, endless, glass fibre conveyor belt.
Belt suction to prevent material from floating. |
| Features | UV LED requires no run-up phase and no cool-down phase.
Instant curing. No waiting times.
Monochromatic UV spectrum 395 nm.
High efficient light system. No creation of ozone. No exhaust needed.
Highly stabilized, infinitely variable UV LED power.
Low heat load at the material. |
|
| Conveyor belt speed | 3-20 m/min., variable |
| Conveyor belt | | Teflon coated, endless, glass fibre conveyor belt, black, antistatic |
|
| Conveyor belt width | 11 respectively 17 cm |
| Max. pass through width | approx. 22 cm |
| Max. curing width | 8 or 12 cm respectively 16 cm |
| Tunnel height | 12 – 50 mm, easily manual adjustable |
| Colour | RAL 9005, black and RAL 7035, grey |
| Manual instruction | German or English |
| Note | | When increased tunnel height is used, ensure that max. light emission limit is not exceeded! |
|
