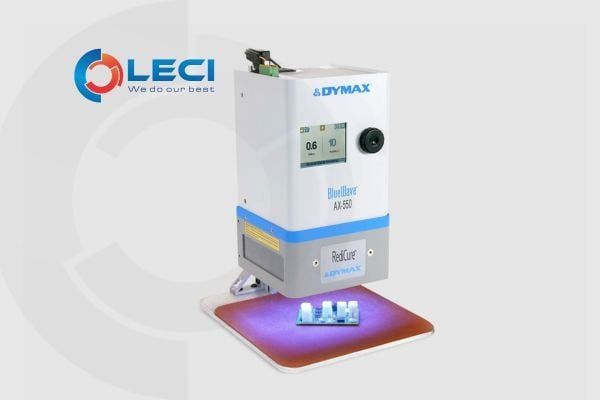

The BlueWave AX-550 V2.0 is a next-generation LED light-curing solution that seamlessly integrates the controller, emitter, and power supply into a single, compact system. Designed for quiet, high-performance curing, it delivers powerful and uniform irradiance over a broad 5” x 5” (127 mm x 127 mm) area, making it ideal for applications requiring large-area exposure without sacrificing space efficiency.
By eliminating the need for a bulky external controller, this system significantly reduces its installation footprint, ensuring effortless integration into Dymax conveyor systems, automated lines, or custom equipment. Its modular emitter design allows for easy field upgrades—users can switch to alternate wavelengths or enhance system power as needed. The AX-550 V2.0 supports programmable intensity and exposure durations, giving users tight control over curing parameters for optimal results.
A streamlined user interface with intuitive push-button navigation simplifies operation, while optional password protection secures process integrity. The system is CE marked and engineered for deployment in global manufacturing environments.
Advanced LED curing technology: Unlike traditional arc-lamp systems, Dymax LED flood-curing platforms utilize high-intensity LEDs to generate narrow-band energy that enables cooler curing conditions, protecting heat-sensitive substrates. With no warm-up time, reduced energy usage, zero bulb replacements, and consistent output performance, LED systems from Dymax offer unmatched reliability, long-term cost savings, and precise process control.
Advantages
- Generous 5” x 5” curing field for broad area coverage
- High irradiance with consistent distribution for rapid throughput
- Fully integrated design: controller, emitter, and power unit combined
- Low-noise operation suitable for quiet lab or production environments
- Modular emitter system for wavelength flexibility and future upgrades
- User-friendly interface with menu-guided programming
- Real-time system monitoring and fault diagnostics
- PLC-compatible for automated control and system integration
- Field-upgradable firmware via SD card slot
- CE marked for international installation
Specifications:
| Wavelengths | RediCure® – 365 nm
PrimeCure® – 385 nm
VisiCure® – 405 nm |
| Intensity Output (at 25 mm) | RediCure®: 650 mW/cm²
PrimeCure®: 800 mW/cm²
VisiCure®: 800 mW/cm² |
| Curing Area | 5” x 5” (127 mm x 127 mm) |
| Dimensions (H × W × D) | 16.8 cm × 29.1 cm × 17.5 cm (6.61" × 11.45" × 6.88") |
| Weight | 6.4 kg (14.1 lbs.) |
| Cooling Method | Air-cooled |
| Control & Interface | Push-button with password protection, PLC ready |
| Warranty | 1 year from date of purchase |
| Operating Conditions | 10°C to 40°C; 0–80% RH, non-condensing; up to 2000 m altitude |
| Storage Conditions | -20°C to +50°C; 10–80% RH, non-condensing |
| Shipping Compatibility | Suitable for ground, air, and ocean freight |
| Compliance | CE Marked, RoHS Compliant |
| Calibration Standard | Verified with Dymax ACCU-CAL™ 50-LED Radiometer (Flood Mode) |
