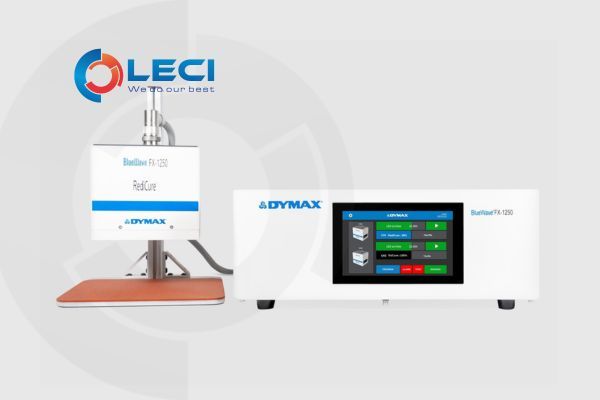

The BlueWave FX-1250 is a high-intensity LED flood-curing system engineered to deliver true, uniform irradiance for fast, deep, and complete curing results. With intensities exceeding 2 W/cm² across a generous 5” x 5” (127 mm x 127 mm) curing area, it is ideal for users requiring large-area curing with exceptional consistency.
Designed with usability in mind, the system features a 7-inch touchscreen interface with intuitive controls, supports PLC integration, and allows users to store up to 16 curing programs for repeatable and reliable processing. Advanced diagnostics continuously monitor system health, providing real-time fault alerts directly on the controller display.
Each controller can operate up to two LED emitters, reducing installation footprint and cost. Users can expand their setup to cover larger areas or employ multiple wavelengths (365, 385, or 405 nm) to match a wide range of UV-curable materials and process requirements.
Leveraging LED technology, the FX-1250 offers quiet, energy-efficient operation with minimal heat emission. The system is also supported by a comprehensive range of accessories, including adjustable stands and protective light shields for maximum application flexibility.
Features
- High-intensity LED curing with total irradiance over 2 W/cm²
- Uniform 5” x 5” (127 mm x 127 mm) curing area
- LED heads available in 365, 385, or 405 nm wavelengths
- Fully programmable with storage for up to 16 curing profiles
- Touchscreen PLC interface for seamless automation integration
- Efficient LED thermal management for continuous operation
- Instant on/off functionality – no warm-up, reduced energy consumption
- One controller supports up to two emitters
Specifications
| Wavelengths | RediCure: 365 nm
PrimeCure: 385 nm
VisiCure: 405 nm |
| Intensity Output | RediCure: 1.7 W/cm²
PrimeCure: 2.1 W/cm²
VisiCure: 2.0 W/cm² |
| Curing Area | 5” x 5” (127 mm x 127 mm) |
| Power Requirements | 100–240 VAC, 10 A, 50–60 Hz |
| Cooling | Air-cooled |
| Controller Dimensions | 1-CH: 380 × 320 × 165 mm
2-CH: 420 × 350 × 165 mm |
| Emitter Dimensions | 170 × 134 × 162 mm |
| Weight | 1-CH: 12.8 kg
2-CH: 19.8 kg
Emitter: 4.0 kg |
| Warranty | 1 year from date of purchase |
| Operating Environment | 10°C to 40°C, 0–80% RH, up to 2000 m altitude |
| Storage Conditions | –20°C to +50°C, 10–80% RH, non-condensing |
| Certifications | RoHS compliant, CE marked |
