BOCI Laser Cutting Head

Liên hệ để biết giá

Tình trạng: Còn hàng Thương hiệu: BOCI

Mô tả sản phẩm

LECI supplies a complete range of genuine BOCI laser cutting heads, including 2D cutting heads, tube cutting (Tube) heads, and 3D bevel cutting heads, covering perse processing requirements from standard applications to high-power industrial production. Backed by an experienced engineering team, LECI provides professional model selection consulting, installation and optical alignment, cutting parameter tuning, operator training, and comprehensive after-sales support throughout the entire service life. LECI is committed to delivering integrated, stable, and efficient BOCI cutting head solutions, precisely matched to each machine configuration and specific production application.

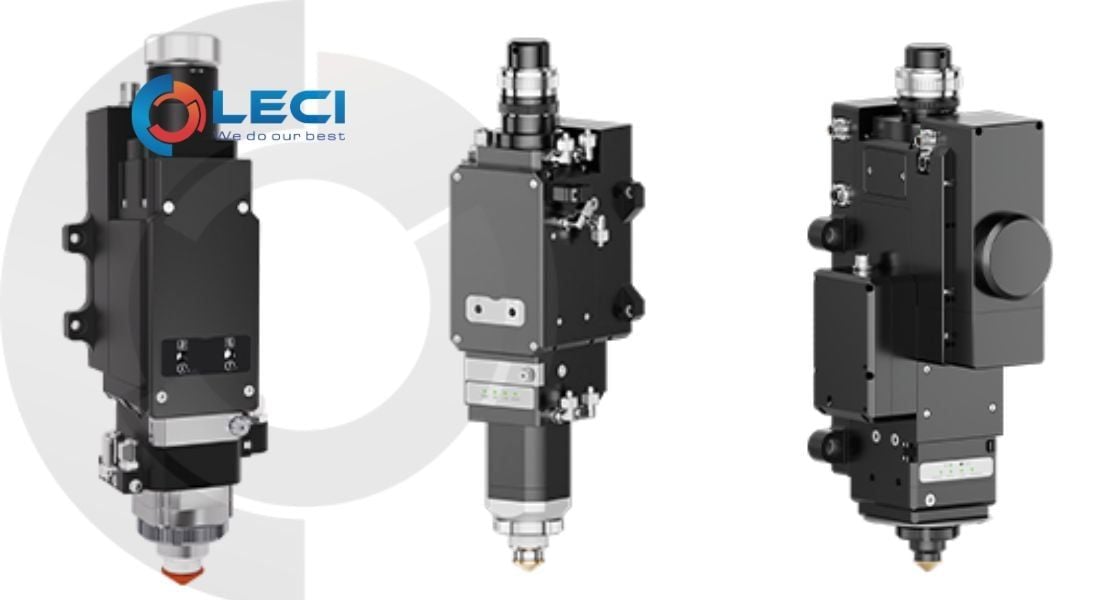

BOCI Laser Cutting Head – 2D

BOCI 2D laser cutting heads are fiber laser cutting heads specifically designed for flat sheet metal processing, engineered for industrial CNC fiber laser cutting systems. They are widely used for cutting carbon steel, stainless steel, aluminum, and non-ferrous metals in sheet metal fabrication.

BOCI 2D cutting heads are available with manual or automatic focus (Auto Focus) depending on the power range, enabling precise focal point control throughout the cutting process. The optical system consists of collimating and focusing lenses, combined with multi-layer protective windows, ensuring stable beam quality, minimizing spatter adhesion, and extending the service life of optical components. This design delivers smooth cutting edges, reduced burr formation, and consistent cutting performance even during continuous operation.

In addition, BOCI 2D laser cutting heads integrate capacitive height sensing and collision protection mechanisms, allowing reliable adaptation to uneven sheet surfaces and reducing operational risks. The water-cooling system ensures thermal stability during high-power operation, while support for O₂, N₂, or compressed air cutting gases enables optimization of cut quality for different materials and production requirements.
LECI supplies genuine BOCI cutting heads and provides professional consulting to select the most suitable models and configurations for each specific application.

BLT310 Series

Power range: ~1–3 kW
Focusing: Manual / Semi-automatic
Compact structure, easy installation
Suitable for low-power fiber laser machines
Low investment cost and easy maintenance

BLT421 Series

Power range: ~3–6 kW
Focusing: Auto Focus
One of the most widely used models on OEM laser machines
Stable cutting performance with high speed
Ideal for mass production of thin to medium sheet metals

BLT441 / BLT461 Series

Power range: ~6–12 kW
Focusing: High-precision Auto Focus
Optimized optical design for high-power applications
Excellent thermal resistance and anti-interference capability
Suitable for factories operating in multi-shift production

BLT6xxx Series (High Power)

Power range: 12–20 kW+
Focusing: High-speed Auto Focus
Designed for thick plate cutting
Requires stable cooling and assist gas systems
Applied in high-power, heavy-duty industrial production lines

dau-cat-boci

dau-cat-boci-1

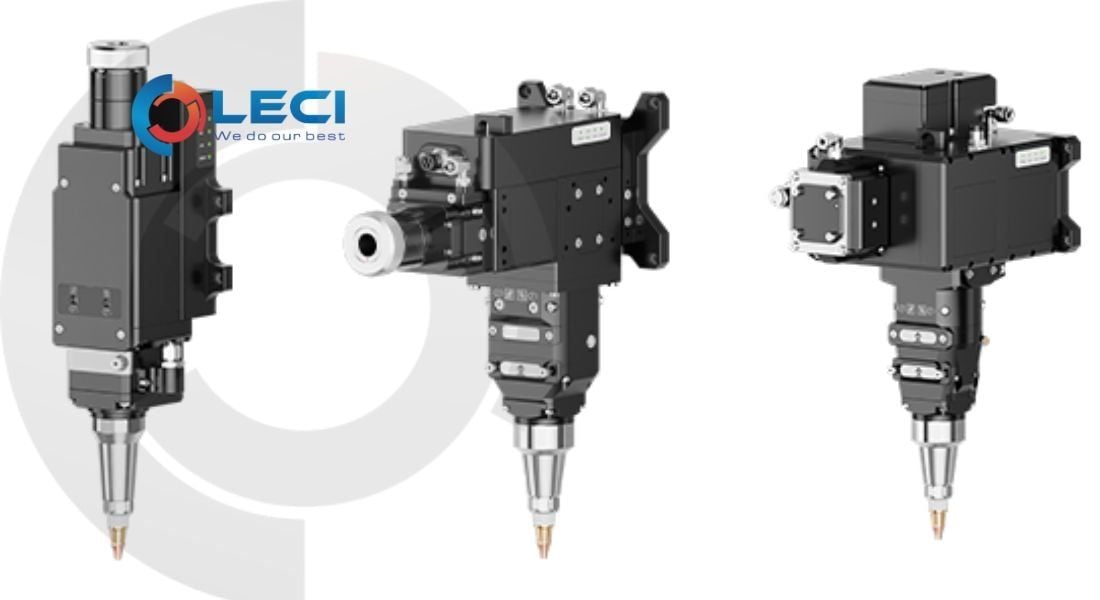

BOCI Tube Laser Cutting Head

BOCI tube laser cutting heads are fiber laser cutting heads specifically designed for tube and profile processing, engineered for industrial CNC fiber laser tube cutting systems. They are suitable for cutting round tubes, square tubes, rectangular tubes, and various formed profiles, and are widely used in processing carbon steel, stainless steel, aluminum, and non-ferrous metals for structural fabrication, metal furniture, and industrial manufacturing applications.

BOCI tube cutting heads are available with manual or automatic focus (Auto Focus) depending on the power range, enabling precise focal point control when cutting on curved tube surfaces. The optical system consists of collimating and focusing lenses, combined with multi-layer protective windows, ensuring stable laser beam quality, reducing spatter adhesion, and effectively protecting optical components during operation. This design delivers accurate cuts, clean edges, minimal burr formation, and consistent performance across different tube types during continuous production.

In addition, BOCI tube laser cutting heads integrate capacitive height sensing and collision protection mechanisms, allowing the cutting head to adapt to geometric deviations of tubes and reducing operational risks caused by bent or irregular tubes. A water-cooling system ensures thermal stability under high-power operation, while support for O₂, N₂, or compressed air cutting gases enables optimization of cut quality according to material type and production requirements.
LECI supplies genuine BOCI tube cutting heads and provides professional consulting to select the appropriate models and configurations for each specific tube cutting machine.

BLT3 T Series

A dedicated cutting head series for standard tube laser cutting machines, suitable for round tubes, square tubes, and basic profiles. This series offers high operational stability and integrated monitoring functions to protect optical components and maintain consistent cutting quality during continuous production.

BLT4 T Series

A mid- to high-end tube cutting head series, optimized for factories operating in multi-shift environments. The design enhances optical stability and anti-interference capability, supporting precise processing of a wide range of tubes and structural profiles for large-scale industrial production.

BLT5 H Series

A high-power tube cutting head series designed for large profiles and thick-walled tubes. Its robust mechanical structure, strong thermal resistance, and optimized cooling system enable stable performance under high power and long operating cycles.

B-Axis Option (Tube Bevel Cutting)

BOCI tube cutting heads can be configured with an optional B-Axis to perform bevel cutting on tubes, supporting applications in structural welding, steel assembly, and high-precision mechanical fabrication.

dau-cat-boci-2

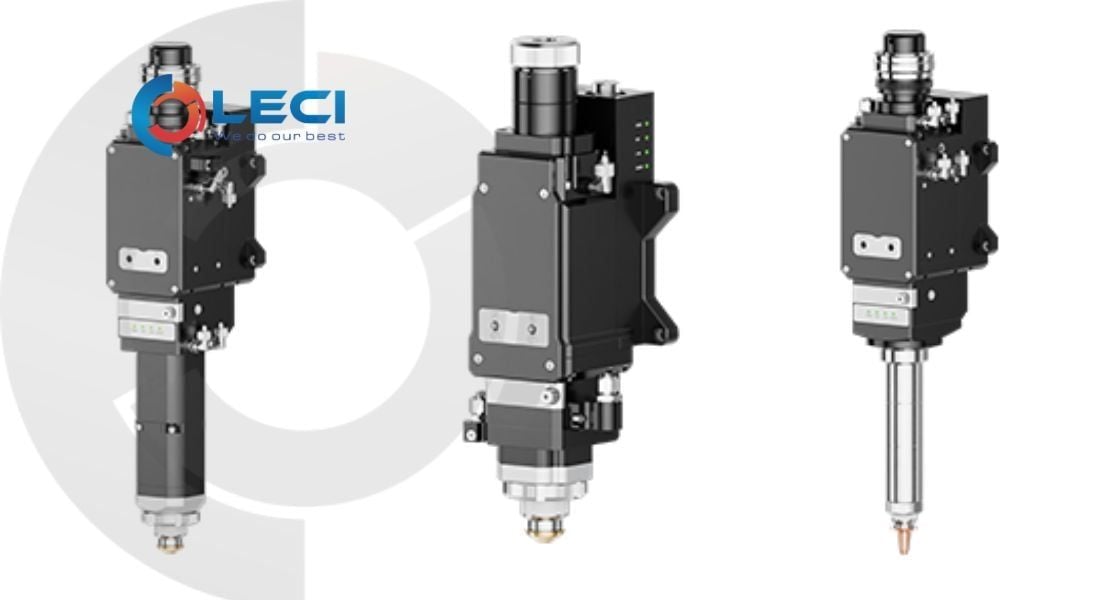

BOCI Laser Cutting Head – 3D

BOCI 3D laser cutting heads are fiber laser cutting heads specifically designed for bevel cutting and 3D processing, engineered for high-power industrial CNC fiber laser cutting systems. Developed by Shanghai Friendess Electronic Technology, these cutting heads effectively support the processing of carbon steel, stainless steel, aluminum, and non-ferrous metals in steel structure fabrication, heavy mechanical processing, and weld edge preparation.

The BOCI 3D BLT4 P cutting head is equipped with an AB swing axis mechanism, enabling flexible bevel cutting with tilt angles of up to ±45°, and supporting common bevel types such as V, Y, X, and K. The Auto Focus system, combined with an optical assembly consisting of collimating and focusing lenses and multi-layer protective windows, ensures stable beam quality even during continuous angle changes. This design allows precise bevel creation in a single cutting pass, reducing secondary processing steps and significantly improving production efficiency.

In addition, the BOCI 3D BLT4 P integrates capacitive height sensing, collision protection, and monitoring functions for protective window status and assist gas pressure, enhancing operational safety and system stability. A full water-cooling system ensures thermal stability during high-power, long-duration operation, while support for O₂, N₂, or compressed air cutting gases enables optimization of cutting quality according to material type and process requirements.
LECI supplies genuine BOCI 3D BLT4 P Series cutting heads and provides professional consulting to select the most suitable models and configurations for specific bevel cutting applications.

dau-cat-boci-3
