The press brake tooling for Bystronic CNC machines supplied by LECI is manufactured to international standards, ensuring high precision, exceptional durability, and stable operation under heavy-duty sheet-metal production conditions. The tooling is fully compatible with all Bystronic CNC press brake models as well as machines using Bystronic-style clamping and tooling systems.
Bystronic Press Brake Tooling
LECI offers a complete range of Bystronic punches and dies—including standard tooling, segmented tooling, special forming tools, and custom-made tools based on technical drawings. Manufactured from premium tool steel, heat-treated and precision-ground, our tooling delivers clean bend lines, excellent repeatability, and long service life in CNC press brake operations.
In addition to supplying the full range of punches and dies for Bystronic CNC press brakes, LECI also provides comprehensive technical consulting based on your product drawings.
Our experienced engineering team analyzes bend geometry, material type, thickness, bend angle, radius, tonnage, and finish requirements to:
Select the most suitable punch and die
Determine the optimal V-die opening for the material thickness
Recommend punch and die angles, bending radii, and forming parameters
Reduce springback and minimize edge cracking or distortion
Ensure collision avoidance between tooling and part geometry
Propose special or custom tooling for complex bending profiles

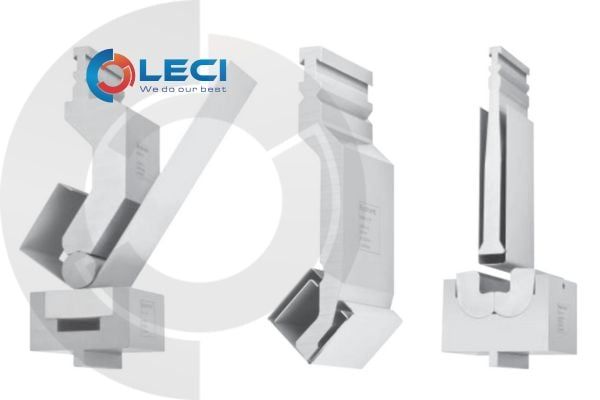

Common Types of Bystronic Press Brake Tooling
Bystronic tooling is engineered for high accuracy and stable bending performance on CNC press brakes. Popular tooling types include:
Common Types of Bystronic Punches
Straight Punch – for standard 90°, 88°, and 85° bends
Gooseneck Punch – for forming parts with flanges without collision
Acute Punch – for 30°–60° acute-angle bending
Radius Punch – for large-radius and smooth bending applications
Offset Punch – for step and offset forming
Hemming Punch – for prebending and hemming operations
Special Forming Punch – custom-made for unique profiles (cabinet doors, deep channels, louvers, curved designs, etc.)
Common Types of Bystronic Dies
V-Die (Standard)
Ideal for most 90°/88°/85° applications; available in V12–V320 for thin to thick materials.
Multi-V Die
Features multiple V-openings in one die, offering flexibility and reducing tool change time.
U-Die / Channel Die
Used for forming U-shapes, channels, cable trays, and deeper profiles.
Radius Die
Designed for large-radius bending to prevent cracking and improve surface quality.
Hemming / Flattening Die
Used for pre-hemming and hemming operations.
Offset / Z-Die
Allows forming an offset or Z-shape in a single bending cycle.
Custom Forming Die
Designed per drawing for complex shapes such as electrical cabinet profiles, embossed panels, louvers, curved edges, and more.
