Datacom VCSEL

Contact

Product Description
Other products

Describe

Use our 850 nm VCSEL arrays when you need to meet stringent specifications for high-speed data communications, with a choice of 10G, 25G, 50G PAM4, and 100G PAM4 VCSEL

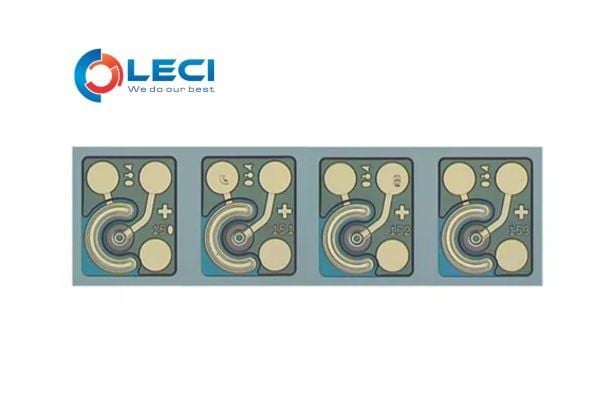

Each of the VCSEL emitters operates in multiple transverse and single longitudinal modes and emits a circular symmetric beam with low divergence that can be efficiently coupled into 50/125 and 62.5/125μm multimode fibers. Available as single chip, 4 and 12 channel arrays.

Model Number	Number of Channels	Max Data Rate (Gbps)	RMS Spectral Bandwidth (nm)	Die Length (µm)	Die Width (µm)	Die Height (µm)
APA4301010002	1	10	≤0.4	230±20	280±20	150±15
APA4301040002	4	10	≤0.4	980±20	280±20	150±15
APA4301120002	12	10	≤0.4	2980±20	280±20	150±15
APA4401010001	1	14	≤0.65	230±20	280±20	150±15
APA4401040001	4	14	≤0.65	980±20	280±20	150±15
APA4401120001	12	14	≤0.65	2980±20	280±20	150±15
APA4501010001	1	14	≤0.65	230±20	280±20	150±15
APA4501040001	4	25	≤0.65	980±20	280±20	150±15
APA4501120001	12	25	≤0.65	2980±20	280±20	150±15
APA4501010002	1	25	≤0.60	230±20	280±20	150±15
APA4501040002	4	25	≤0.60	980±20	280±20	150±15
APA4601040301	4	28	≤0.60	980±20	280±20	150±15
APA4601040302	4	50	≤0.40	980±20	280±20	150±15
APA4701040003	4	100	≤0.55	980±20	280±20	200±15

Model Number: APA4301010002, APA4301040002, APA4301120002, APA4401010001, APA4401040001, APA4401120001, APA4501010001, APA4501040001, APA4501120001, APA4501010002, APA4501040002, APA4601040301, APA4601040302, APA4701040003
