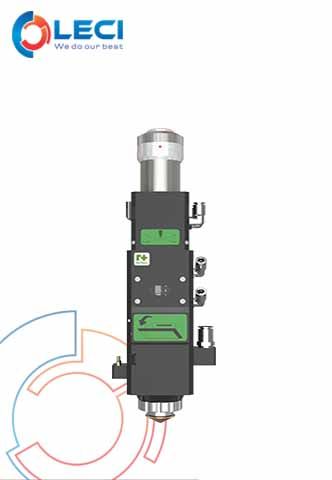

Đầu Cắt Raytools BT240S

• Power Rating ≤3.3KW
• Clear Aperture 28mm
• Collimator Focal length 100mm
• Focusing Focal length 125mm/155mm/200mm
• Cover glasses φ24.9mm*1.5mm(CM)
• φ27.9mm*4.1mm(FM)
• Assist Gas Pressure ≤25bar
• Weight   ～3.5kg
• Height Sensor（EtherCAT or ±10V optional）
• Distance Range(1mm Recommended) 0.3-10mm
• Calibration Auto Calibrating/Manual Calibrating
• Response Time <1ms
• Temperature Stability In the range of 0 to 45℃, the temperature stability is in the range of ±5%
• Power Requirement 24V
• Output (linear or optimization curve signal) 0~10V/+-10V Analog
