The Fusion UV DRC Series is purpose-built for curing inks and coatings on wire, cable, and other continuous linear products. Featuring C6 and C10 models, this series is optimized for high-speed inkjet marking and wire jacketing applications, providing precise and efficient curing performance in demanding production environments.

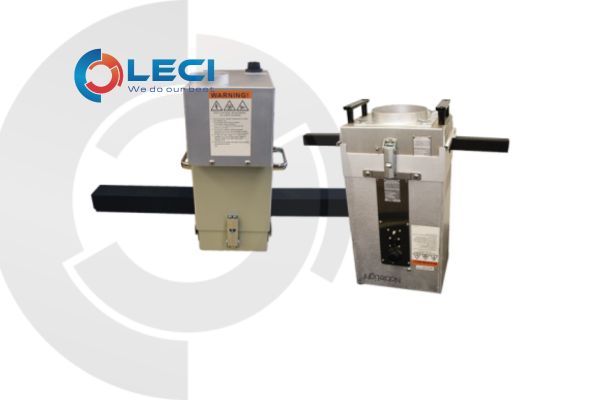

Each system combines a 6-inch or 10-inch microwave-powered irradiator with a specialized light shield to create a highly concentrated elliptical UV curing zone around the moving wire or cable. This geometry maximizes UV exposure and acceleration of the curing process while helping to maintain product quality and marking durability.
The light shield features a half-elliptical reflector, which—when paired with the standard irradiator reflector—forms a complete ellipse with the bulb positioned at the focal point. The wire or cable passes through a shield opening designed to ensure 360° curing coverage on small-diameter wire and substantial curing area on larger cable surfaces.
A combined push-pull cooling system utilizes both lamp and exhaust blowers to maintain stable operating temperature while preventing fumes or volatile compounds from entering the workspace.
Features:
Full-circumference UV curing for small wire, robust UV exposure for larger cable surfaces
Fast, reliable curing for high-speed inkjet marking and coating lines
Easy serviceability thanks to split light shield design along the wire path
Push-pull air cooling maintains clean operating conditions and controlled airflow
Modular design compatible with Fusion UV microwave irradiator systems (C6 & C10)
High efficiency for continuous production environments
Applications
Designed for precision curing in:
Wire marking and coating
Cable jacketing marking and coating
Fiber optic strength member rod production
Contact infomation:
LECI Co., Ltd
R-1901, Saigon Trade Center Bld, 37 Ton Duc Thang Str., Ben Nghe W., Dist. 1, HCM City 70000, VN.
Electrodeless bulb available in different spectral outputs Lamp module, either 6-inch or 10-inch, and choice of power levels Power supply matched to lamp module Light shield with secondary elliptical reflector housing (C6 for 6-inch or C10 for 10-inch), with secondary reflector and light shield extensions
