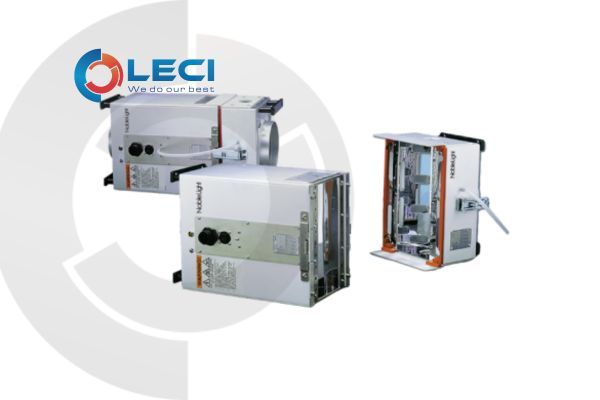

The Fusion UV DRF Series is engineered specifically for the optical fiber and cable manufacturing industry, delivering high-power, high-intensity UV curing for photoresponsive coatings, coloring inks, and ribbon matrix polymers. Designed to meet the demanding speeds of modern production, the DRF Series ensures consistent curing performance with exceptional uniformity and efficiency.
Featuring the DRF F6 and DRF F10T configurations, the system utilizes a microwave-powered irradiator with a proprietary optical design that focuses intense UV energy precisely where it is needed. Available with either 6-inch or 10-inch lamp modules, the DRF Series provides powerful and reliable performance across a wide range of fiber manufacturing applications.
Its patented secondary reflector system delivers the highest UV irradiance per watt among UV curing systems in the industry, making DRF a globally trusted solution for production environments requiring sustained throughput and excellent coating integrity.
Features:
Microwave-powered lamp ensures long-term stability and spectral consistency
Industry-leading UV irradiance output for superior curing efficiency
Modular design allows quick bulb replacement and simplified maintenance
Power supplies can be grouped for streamlined electrical control
Flexible integration with enhanced control settings and pre-wired connections
Interchangeable bulbs for optimal spectral matching with specific coating chemistries
Optional precision alignment system for accurate lamp positioning
Applications
Ideal for high-performance optical fiber production, including:
Optical fiber primary and secondary coating
Coloring ink curing for identification and routing
Ribbon matrix polymer curing for multi-fiber structures
Cable marking and protective coating
Contact infomation:
LECI Co., Ltd
R-1901, Saigon Trade Center Bld, 37 Ton Duc Thang Str., Ben Nghe W., Dist. 1, HCM City 70000, VN.
Electrodeless bulb available in different spectral outputs Lamp module avaialble in either 6-inch or 10-inch, with choice of power levels Power supply matched to lamp module Light shield and secondary elliptical reflector housing (F6 for 6-inch or F10T for 10-inch), with secondary reflector, quartz tube, optional nitrogen fittings Blowers for cooling air matched to the system (optional)
