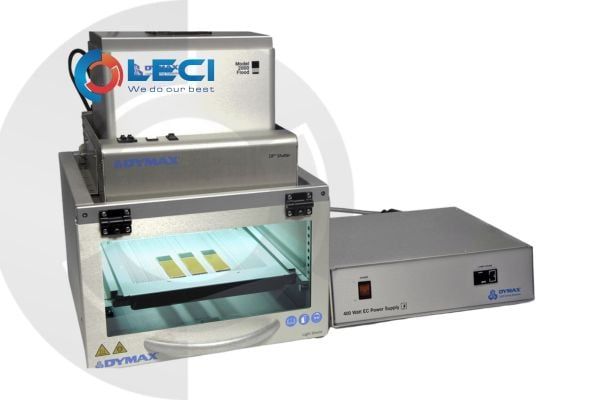

The Dymax 2000-EC Series is engineered for general-purpose, low-intensity UV curing of adhesives, coatings, and inks. Specifically designed to emit worker-safe, longwave UVA energy, these systems limit exposure to more hazardous UV bands while still delivering effective curing performance.
Featuring a large 64-square-inch (approx. 412 cm²) curing area, the 2000-EC flood lamps are ideal for laboratory environments, batch production, and R&D applications.
The system includes a 400 W metal halide bulb, reflector housing, and power supply, and supports a wide range of UV bonding, potting, sealing, tacking, and encapsulating tasks across industries such as automotive, electronics, optics, and medical devices.
Optional accessories—including UV shielding, shutter assemblies, and adjustable lamp stands—can be pre-configured or retrofitted to meet specific application needs. Fully integrated, ready-to-use UV flood curing systems are also available.
Features
- Extended Bulb Life: Now backed by a 2,000-hour warranty, ensuring longer service intervals and reduced replacement costs.
- Generous Curing Area: Covers a wide 8" × 8" (20.3 × 20.3 cm) area—perfect for curing large parts or multiple components simultaneously.
- Durable Build: Constructed from rugged brushed aluminum for long-term reliability in demanding production environments.
- Optimized for Batch Processing: Ideal for high-throughput applications and uniform curing across large surfaces.
- Flexible Installation: Can be easily integrated into conveyor systems or used as a stand-alone benchtop solution.
Specifications:
| Output Power | 400 Watts |
| UV Light Source | UVA flood |
| Typical Intensity in the UVA range (320-390 nm) | 105 mW/cm² |
| Dimensions of Illuminated Area | 8 in x 8 in [20.3 cm x 20.3 cm] |
| EC Input Power Requirements | Universal 90-265 VAC (grounded), 47-63 Hz |
| Power Supply Weight | 12.25 lbs [5.6 kg] |
| Power Supply Dimensions (approximate) | 12 in L x 16 in W x 4.25 in H [30.5 cm x 40.6 cm x 10.8 cm] |
| Reflector Housing Dimensions (approximate) | 9 in L x 10.5 in W x 7.5 in H [22.9 cm x 26.7 cm x 19.1 cm] |
| Reflector Housing Weight | 3.4 lbs [1.5 kg] |
| Operating Environment | 10-40°C
0-80% non-condensing |
