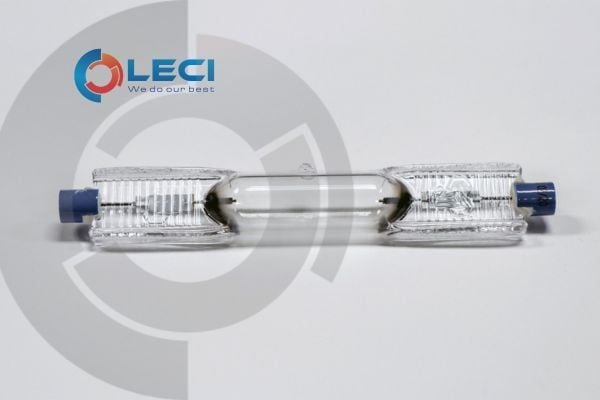

Dymax 38560 - Metal Halide UV Bulb
Dymax 38560 - Metal Halide UV Bulb is a high-performance 400-watt metal halide UV bulb, specifically designed for use in Dymax EC-series flood lamp systems such as the 1200-EC, 2000-EC, and 5000-EC. Engineered for precision UV curing applications, this lamp delivers a balanced spectrum of UVA and visible light, making it ideal for curing UV-sensitive adhesives, coatings, and inks in both batch and continuous processing environments.
Whether deployed in medical device assembly, electronics manufacturing, or industrial bonding processes, the 38560 bulb ensures consistent, high-intensity output with exceptional operational life.
Specifications
| Parameter | Value |
| Lamp Type | Metal Halide (UVA-visible spectrum) |
| Power Rating | 400 W (typical: 380–400 W) |
| Operating Voltage | ~135 V AC |
| Operating Current | ~3.2 A |
| Arc Length | Approx. 16.3 mm |
| Total Length | Approx. 105–106 mm |
| Base Type | R7s (horizontal mount) |
| Typical Lifetime | Up to 2,000 hours (≤20% degradation) |
| Cooling Method | Passive/forced air (via fixture) |
| Ballast Compatibility | Dymax 400 W ballast systems |
Performance features
- Optimized UV Output: Provides a broad UVA and visible light spectrum tailored for effective curing of Dymax light-curable materials.
- High Intensity, Low Degradation: Maintains stable irradiance over extended use, minimizing curing time and ensuring product consistency.
- Extended Operating Life: Rated up to 2,000 hours under standard conditions with less than 20% intensity loss.
- System Compatibility: Fully compatible with Dymax UV flood lamp systems including UVCS conveyors, SideCure, EdgeCarry, BondBox, and PC-series units.
- Reliable Ignition and Re-ignition: Engineered for consistent performance with rapid start-up and re-strike stability.
Applications:
- Electronics Manufacturing: UV curing of conformal coatings, encapsulants, and bonding agents.
- Medical Device Assembly: Precision curing of light-sensitive adhesives in sterile environments.
- Graphic Arts & Printing: UV ink and coating curing on substrates for signage, labels, and packaging.
- Automotive Components: Curing of gaskets, coatings, and adhesives requiring fast throughput
We have available stock ready for fast delivery, with installation and replacement support provided.
