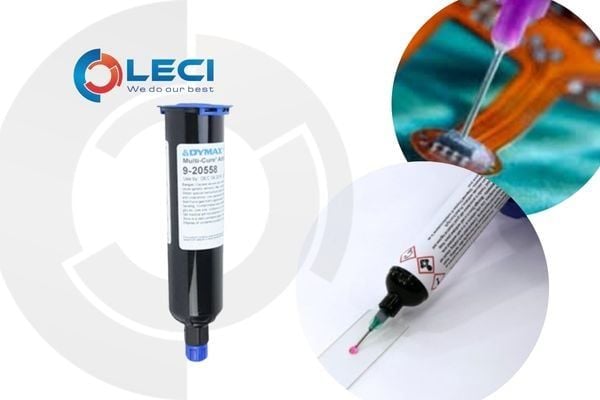

Dymax Multi‑Cure 9‑20558‑REV‑A is a high-viscosity, flexible encapsulant/conformal coating designed for UV + heat dual-curing—ideal for protecting electronic components in shadowed areas. It delivers strong adhesion, flexibility, and environmental resistance.
Key Features
- Dual-cure system: UV/Visible light rapidly creates a tack-free surface; heat cure (110–150 °C) completes cure in shadow regions.
- Thixotropic, high-viscosity formulation: Ideal for coating tall or densely populated components without slumping.
- Flexible and resilient: Minimizes mechanical stress; compatible with flexible circuits (FPC).
- One-part, solvent-free: Easy to process; halogen-free; RoHS compliant; UL 94 V‑0 flame rating.
- Excellent substrate adhesion: Bonding to FR4, metals, ceramics, epoxy-fibers.
Specifications
- Viscosity: ~24,000 cP
- Hardness: Shore D 35
- Tensile strength: ~6.2 MPa (900 psi)
- Elongation at break: 160%
- Modulus: ~2.3 MPa (340 psi)
- Tg: ~35 °C
- CTE: ~136 ×10⁻⁶ (low), ~212 ×10⁻⁶ (high)
- Water absorption (2 h boil): ~1.9%
- Volume resistivity: ~2.3 ×10¹² Ω·cm
- Dielectric breakdown: ~43.6 kV/mm (1,100 V/mil)
- Dielectric constant @1 MHz: ~3.66; dissipation factor: 0.05
- Density: ~1.06 g/ml
- Linear shrinkage: ~1.8%
Applications
- Coating & encapsulation for flexible circuits, chip encapsulation, wire bonding, touch-up on tall or crowded PCBs.
- Use in aerospace, military, medical, wearable, and automotive electronics.
Benefits
- Fast, deep cure: UV topside cure, heat ensures full shadow coverage.
- Robust protection: flexible, low-stress, moisture-resistant, minimal shrinkage.
- Precision application: high-viscosity thixotropic formulation prevents sagging.
- Compliant & safe: RoHS, UL V‑0, no VOCs or halogens.
- Energy-efficient processing: combines UV and heat, reducing cycle time and cost.
