LECI is a unit specializing in providing laser cutting machine components and other CNC machine lines. We sell fiber laser cutting heads of Raytool, Boci, WSX,... Some types of fiber laser cutting heads BT210S, BT220, BT240S, FM220, BM110, BM111, BM04K, BM06K, BS03CAT, BS06K, BS12K, BS20K, BS30K, BT220-3D, BD04K, BM06K-3D, BM06K-3D-90°, BS12K-3D, GF101, GF101F, GF102, GF402, GF403, GF501, GF502, BLT310, BLT642H, BLT682H, BLT6102H, BLT6120H,...
BT210S Fiber Laser cutting head
The best choice for economical laser cutting machine of 1500W power rating and below.
Various fiber interfaces like QBH and QCS to work with different prevailing lasers.
Optimized optical configuration and smooth gas circuit to improve cutting quality and efficiency significantly. Light-duty and compact size to decrease the payload of machine tool and improve the cutting speed and quality.
Technical Data BT210S
Power Rating: 1.5KW
Clear Aperture: 21mm
Assist Gas Pressure: ≤20bar
Weight: ~ 2.5kg
Diameter of Nozzle Tip: 1.2mm，1.5mm，2.0mm，2.5mm
Brand: Raytools
BT2200 Fiber Laser cutting head
The best choice for economical laser cutting machine of 2000W power rating and below.
Optimized optical configuration and smooth gas circuit to improve cutting quality and efficiency significantly.
Light-duty and compact size to decrease the payload of machine tool and improve the cutting speed and quality.
Technical Data BT2200
Power Rating: 2000W
Clear Aperture: 25mm
Assist Gas Pressure: ≤25bar
Weight: ~ 2.6kg
Diameter of Nozzle Tip: 1.2mm，1.5mm，2.0mm，2.5mm
Brand: Raytools
BT240S Fiber Laser cutting head
IP65 dustproof level with fully enclosed beam path to decrease contamination risk.
Zero focus scale recovery function to maintain accurate focus adjustment, no worry about the parameter adjustment. Built-in cooling function of collimation, focus modules and nozzle assembly to solve the overheating problem.
All-in-one design and improved QBH fiber interface to prevent from being stuck for water leakage and rusts.
Technical Data BT240S
Power Rating: 3300W
Clear Aperture: 28mm
Assist Gas Pressure: ≤25bar
Weight: ~ 3.5kg
Diameter of Nozzle Tip: 1.2mm，1.5mm，2.0mm，2.5mm
Brand: Raytools
FM220 Fiber Laser cutting head
The focus module consists of combo lens with multiple optical lenses.
Knob type focus adjuster for fine adjustment.
Minimum scale 0.05mm, adjustable range 10mm.
Drawer type cover glass holder to facilitate replacement.
Work with small aperture nozzle, minimum nozzle aperture 0.3mm.
Various fiber interfaces to work with different lasers.
Available lens includes 355nm and 532nm wavelength. (customizable)
Optional CCD interface to monitor the kerf, and optional configurations for fiber input angle. (customizable)
Optional nozzle connector with sensor and height sensor.
Technical Data FM220
Power Rating: 500W/1500kW
Brand: Raytools
BM110 Fiber Laser cutting head
Optimized optical configuration and smooth gas circuit to improve cutting quality and efficiency significantly.
Auto focus to reduce human intervention. Auto focus range is -12~+10mm and focusing accuracy is 0.05mm
Added cover glasses to protect the collimation lens effectively.
Drawer type cover glass holder to facilitate replacement.
Various fiber interfaces like QBH, QD to work with different prevailing lasers.
Technical Data BM110
Power Rating: 2000W
Auto Focus
Range: -12mm ~ +10mm
Velocity: ≤170mm/s
Acceleration: ≤10m/s2
Accuracy: 0.05mm
Clear Aperture: 28mm
Assist Gas Pressure: ≤30bar
Weight: ~ 5.0kg
Diameter of Nozzle Tip: 1.2mm，1.5mm，2.0mm，2.5mm
Brand: Raytools
BM111 Fiber Laser cutting head
3 cover glasses to protect focus & collimation lens.
Auto focus to reduce human intervention. Speed up to 170mm/s and accurate to 0.05mm. IP65 class dustproof. All-around dust prevention.
To 12mm thick SUS304, with a speed of 0.7m/min@3000W; to 12mm thick Q235, speed of 1.2m/min@3000W.
Technical Data BM111
Power Rating: 3300W
Auto Focus
Range: -12mm ~ +10mm
Velocity: ≤170mm/s
Acceleration: ≤10m/s2
Accuracy: 0.05mm
Clear Aperture: 28mm
Assist Gas Pressure: ≤30bar
Weight: ~ 5.7kg
Diameter of Nozzle Tip: 1.2mm，1.5mm，2.0mm，2.5mm
Brand: Raytools
BM04K (type E) Fiber Laser cutting head
Optimized optical configuration and smooth gas circuit to improve cutting quality and efficiency significantly.
With fiber interfaces like QBH to work with different prevailing lasers.
EtherCAT bus communication and focus module with busfield control enable program setting for continuous fast focusing.
Drawer type cover glass holder to facilitate replacement
Built-in cooling function of optical modules and nozzle assembly to extend continuous working time.
Reduce the risk of contamination caused by replacing the protective lens.
Technical Data BM04K
Power Rating: 4000W
Auto Focus
Range: -12mm ~ +10mm
Velocity: ≤170mm/s
Acceleration: ≤10m/s2
Accuracy: 0.05mm
Clear Aperture: 28mm
Assist Gas Pressure: ≤30bar
Weight: ~ 4.6kg
Diameter of Nozzle Tip: 1.2mm，1.5mm，2.0mm，2.5mm
Brand: Raytools
BM06K Fiber Laser cutting head
Cooling structure for both collimation module and focus module, and cooling gas to nozzle which effectively protects the nozzle & ceramic part and extends the lifespan
Auto focus by moving collimation lens to achieve higher speed and bigger auto focus range. Temperature monitoring of bottom cover glass could be accessed at mobile APP or computer desktop in real-time. Alarm output for overheating to protect the optics system effectively.
Integrated design to ensure sealing. Improved fiber interface(QBH, QD, G5) to benefit their compatibility of lasers and prevent from being stuck for water leakage and rusts.
4 cover glasses designed to effectively decrease contamination risk during replacement of fiber & cover glass and extend the lifespan of collimation lens and focus lens.
Technical Data BM06K
Power Rating: 6000W
Auto Focus
Range: -17mm~+17mm(F150mm) -32mm~+32mm(F200mm)
Velocity: ≤200mm/s
Acceleration: ≤10m/s2
Accuracy: 0.01mm
Clear Aperture: 28mm
Assist Gas Pressure: ≤30bar
Weight: ~ 4.6kg
Diameter of Nozzle Tip: 1.2mm，1.5mm，2.0mm，2.5mm, 3.0mm， 3.5mm，4.0mm，4.5mm，5.0mm
Brand: Raytools

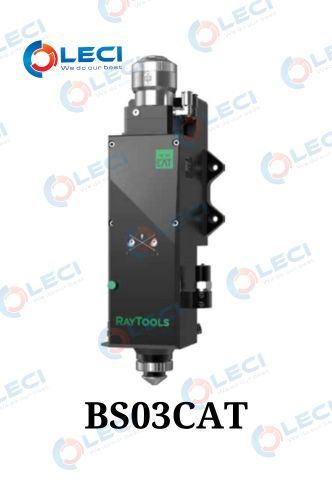

BS03CAT Fiber Laser cutting head
3 sets of cover glasses to extend the lifespan of the core lens, multiple protection to improve the sealing level of the core cavity.
Simplify lens installation, reduce the difficulty and cost of maintenance; BS full series of standard anti-corrosion process to avoid long-term use of water cooling corrosion water leakage.
Greatly improve the air cutting speed and effect, 10%-40% higher than the conventional cutting head.
More accurate gas control, more stable section quality; Open air protection and anti-dull design to reduce the probability of contaminated lenses; One key intelligent calibration pressure, more convenient to change nozzle/process .
The focus speed is faster, the focusing range is wider, the perforation is more efficient, and the small nozzle full power carbon steel cutting process is supported.
The optional built-in capacitance amplifier makes the elevation follow more accurate and stable.
Technical Data BS03CAT
Power Rating: 3000W
Auto Focus
Range: -22mm~+22mm(F150mm)
Velocity: ≤200mm/s
Acceleration: ≤10m/s2
Accuracy: 0.01mm
Numerical Aperture: 0.14
Assist Gas Pressure: ≤30bar
Weight: ~ 5kg
Diameter of Nozzle Tip: 1.2mm，1.5mm，2.0mm，2.5mm, 3.0mm， 3.5mm，4.0mm，4.5mm，5.0mm
Brand: Raytools

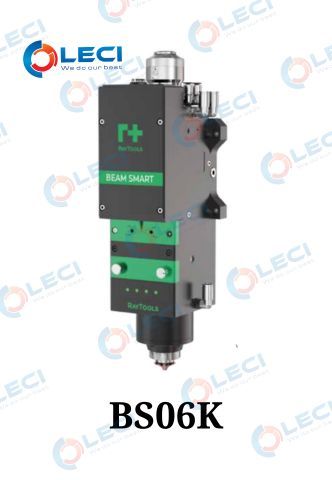

BS06K Fiber Laser cutting head
Light-duty and ingenious design with high acceleration. Optimized optical configuration and smooth gas circuit to improve cutting quality and efficiency significantly. Analog control focusing unit or EtherCAT bus communication and focus module enable continuous fast focusing.
Fiber interfaces like QBH, QD, G5 to work with various prevailing lasers.
Through WLAN, the monitored data can be read on the mobile terminal and CNC system
Various built-in sensors provide real-time data feedback in processing, such as temperature inside the cutting head of the cover glass and focus lens, temperature and humidity of the cavity, and the gas pressure, etc.
Technical Data BS06K
Power Rating: 6000W/8000W
Auto Focus
Range: -17mm~+17mm(F150mm) -32mm~+32mm(F200mm)
Velocity: ≤200mm/s
Acceleration: ≤10m/s2
Accuracy: 0.01mm
Numerical Aperture: 0.14
Assist Gas Pressure: ≤30bar
Weight: ~ 7.5kg
Diameter of Nozzle Tip: 1.2mm，1.5mm，2.0mm，2.5mm, 3.0mm， 3.5mm，4.0mm，4.5mm，5.0mm
Light-duty design to improve the machine accelera- tion; smooth and high-efficient nozzle cooling gas circuit instead of the traditional way of using air and the air compressor, with optimized optics system and excellent nozzle cooling structure to improve the stability, quality, and efficiency in cutting steel sheet. Fiber interfaces like QBH, QD, Q+, LOE to work with various prevailing lasers. Analog control focusing unit or EtherCAT bus communication and focus module enable continuous fast focusing
Through WLAN, the monitored data can be read on the mobile terminal and CNC system. Various built-in sensors provide real-time data feedback in processing, such as temperature inside the cutting head of the cover glass and focus lens, temperature and humidity of the cavity, and the gas pressure
Thiết kế nhẹ để cải thiện khả năng tăng tốc của máy; mạch khí làm mát vòi phun trơn tru và hiệu quả cao thay vì cách truyền thống sử dụng không khí và máy nén khí, với hệ thống quang học được tối ưu hóa và cấu trúc làm mát vòi phun tuyệt vời để cải thiện độ ổn định, chất lượng và hiệu quả trong quá trình cắt.

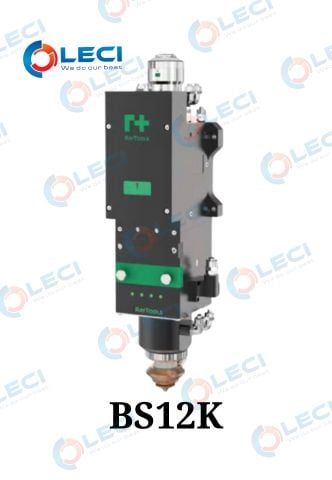

Technical Data BS12K
Power Rating: 12000W
Auto Focus
Range: -40mm~+40mm
Velocity: ≤200mm/s
Acceleration: ≤10m/s2
Accuracy: 0.01mm
Numerical Aperture: 0.14
Assist Gas Pressure: ≤30bar
Weight: ~ 8.2kg
Diameter of Nozzle Tip: 1.0mm，1.2mm，1.3mm，1.5mm，1.7mm，1.9mm，2.1mm， 2.3mm，2.5mm，3.5mm，4.0mm，5.0mm，7.0mm
Light-duty design to improve the machine accelera- tion; smooth and high-efficient nozzle cooling gas circuit instead of the traditional way of using air and the air compressor, with optimized optics system and excellent nozzle cooling structure to improve the stability, quality, and efficiency in cutting steel sheet.
Various fiber interfaces like QBH, QD, Q+, LOE to work with different prevailing lasers.
Analog control focusing unit or EtherCAT bus communication and focus module enable continuous fast focusing
Through WLAN, the monitored data can be read on the mobile terminal and CNC system. Various built-in sensors provide real-time data feedback in processing, such as temperature inside the cutting head of the cover glass and focus lens, temperature and humidity of the cavity, and the gas pressure, etc.

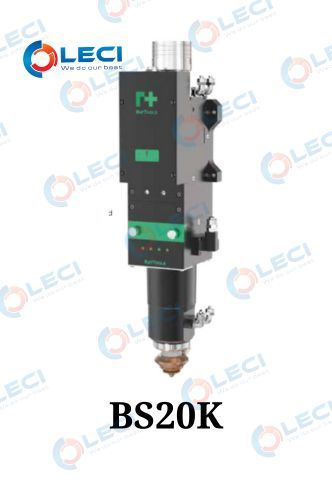

Technical Data BS20K
Power Rating: 20000W
Auto Focus
Range: -72mm~+72mm
Velocity: ≤200mm/s
Acceleration: ≤10m/s2
Accuracy: 0.01mm
Numerical Aperture: 0.14
Assist Gas Pressure: ≤30bar
Weight: ~ 8.2kg
Diameter of Nozzle Tip: 1.0mm，1.2mm，1.3mm，1.5mm，1.7mm，1.9mm，2.1mm， 2.3mm，2.5mm，3.5mm，4.0mm，5.0mm，7.0mm
Brand: Raytools
BS30K Fiber Laser cutting head
Light-duty design to improve the machine acceleration; smooth and high-efficient nozzle cooling gas circuit instead of the traditional way of using air and the air compressor, with optimized optics system and excellent nozzle cooling structure to improve the stability, quality, and efficiency in cutting steel sheet.
Various fiber interfaces like QBH, QD, Q+, LOE to work with different prevailing lasers. Analog control focusing unit or EtherCAT bus communication and focus module enable continuous fast focusing. Through WLAN, the monitored data can be read on the mobile terminal and CNC system.
Various built-in sensors provide real-time data feedback in processing, such as temperature inside the cutting head of the cover glass and focus lens, temperature and humidity of the cavity, and the gas pressure, etc.
