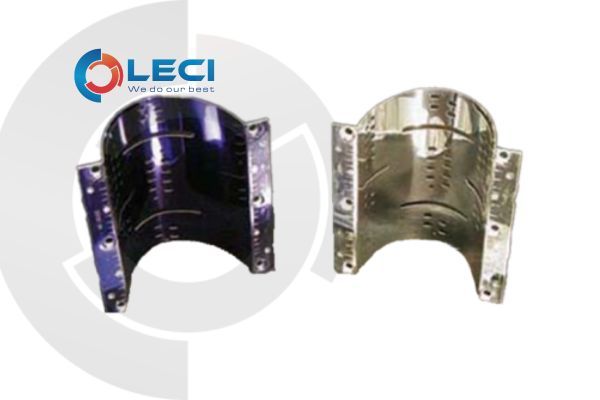

Fusion UV Dichroic Reflectors are engineered to optimize UV curing performance on temperature-sensitive substrates. By minimizing infrared (IR) heat reflected onto the product, these reflectors help maintain material integrity while ensuring reliable curing results. They can be easily retrofitted into existing Fusion UV microwave-powered irradiators or integrated into new UV curing system designs.
Constructed to match the exact dimensions of standard reflectors used in Fusion UV systems, each reflector features 50+ dielectric coating layers that efficiently reflect UV energy while absorbing longer IR wavelengths. The absorbed heat is safely dissipated through air-cooling, enhancing process stability and thermal protection. Two product options are available: Standard Dichroic and Dichroic Plus — selected based on application-specific thermal and curing requirements.
Features:
Optimized for heat-sensitive substrates such as electronics, plastics, and medical components
Significantly reduces IR heat transfer during UV curing
Enhances product quality and surface finish
Fully compatible and easily installed in Fusion UV microwave-powered irradiators
Improves process stability and substrate protection
Applications
Dichroic Reflectors are ideal for advanced curing workflows in:
Plastic decorating and coating
Industrial converting and web coatings
Medical device coating and marking
Electronic component manufacturing
Optical coating processes
Automotive in-mold decoration (IMD)
Contact infomation:
LECI Co., Ltd
R-1901, Saigon Trade Center Bld, 37 Ton Duc Thang Str., Ben Nghe W., Dist. 1, HCM City 70000, VN.
50 or more layers of dielectric coating on reflector surface absorbs IR energy Identical dimensions to standard UV curing system reflector Standard Dichroic Reflector - designed primarily for use with "D" bulb, inks, and some comparatively slow processes. Dichroic Plus Reflector - provides enhanced reflectance in the UVC band (200-260nm) for improved surface cure typically with "H" bulbs
