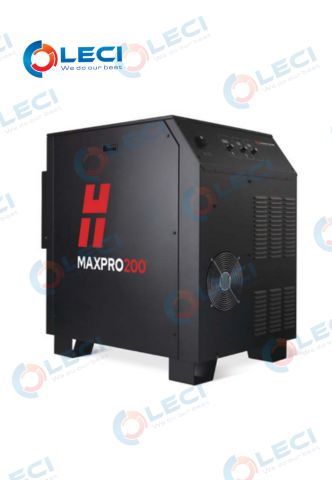

• Model: Hypertherm MaxPro 200
• Manufacturer: Hypertherm
• Distributor in Vietnam: LECI
• Input voltages: 200/208 VAC, 3-PH, 50 Hz, 108/104 A
  220 VAC, 3-PH, 50 – 60 Hz, 98 A
  240 VAC, 3-PH, 60 Hz, 90 A
  380 VAC, 3-PH, 50 Hz, 57 A
  400 VAC, CE, 3-PH, 50 – 60 Hz, 54 A
  415 VAC, CE, 3-PH, 50 Hz, 52 A
  440 VAC, 3-PH, 50 – 60 Hz, 49 A
  480 VAC, 3-PH, 60 Hz, 45 A
  600 VAC, 3-PH, 60 Hz, 36 A
• Output voltage: 50 – 165 VDC
• Maximum output current:     200 A
• Duty cycle rating:     100% @ 33 kW, at 40° C (104° F)
• Operating temperature: -10° C to 40° C (+14° F to +104° F)
• Power factor: 0.98 @ 33 kW output
• Maximum OCV: 360 VDC
• Dimensions: 102 cm (40.14") H, 69 cm (27.12") W,
  105 cm (41.23") L
• Weight: 335 kg (740 lbs)
• Gas supply
    Plasma gas: Air, O2, N2
    Shield gas: Air, N2
    Supply gas pressure: 6.2 +/- 0.7 bar (90 +/- 10 psig)

Maximized productivity

• Hypertherm MaxPro 200 combines fast cutting speeds and quick process changes to maximize productivity.
• The fastest cut speeds in its class produce more finished parts per hour.
• Engineered with 100% duty cycle for the most demanding production environments.
• Quickly transition between cutting, gouging, mechanized and handheld processes with automatic settings, tool free leads and quick disconnect torches.

Easy operation

• The easiest plasma system in its class for air and oxygen plasma cutting—easy to install, easy to operate, easy to maximize performance.
• Intuitive one step interface and automatic gas control deliver consistent results without operator intervention.
• Advanced diagnostics simplify troubleshooting and service.
• Optional serial communications allow full control of the system from the CNC.

Step up to a superior technology
MAXPRO200® vs. oxyfuel

• Cut speeds and pierce times are as much as 7 times faster for maximized productivity.
• Significantly lowers operating cost per part up to 50 mm (2").
• Less dross, less warping, and a smaller heat-affected zone to minimize high-cost secondary operations.
• Increases flexibility to cut and gouge mild steel, stainless steel, aluminum, and stacked, painted or rusted metal.
• Improves mild steel cutting safety over the use of acetylene, a highly
• flammable gas used for oxyfuel cutting.

Low operating cost

• Exceptional consumable life and consistent performance deliver more cost-effective results.
• Do more with less power: patented consumable designs enable best in class cut speeds and robust production piercing using lower amperage levels.
• Superior cut quality and consistency minimize high cost secondary operations.
• Advanced consumable technologies including LongLife®, CoolFlow™ and TrueFlow™ significantly increase consumable life to reduce cost per part.

Reliable performance

• Engineered and tested using the same proven design process as the HyPerformance® HPRXD® product family for superior reliability in the most demanding cutting environments.
• During development, Hypertherm systems endure rigorous reliability testing procedures equivalent to years of use in extreme operating environments.
• The Hypertherm MaxPro 200 is built with less than half the number of internal parts compared to other systems on the market. Fewer parts provide greater reliability and serviceability.
• Self-diagnostics are performed automatically at startup and continually throughout the cutting process

Hypertherm MaxPro 200

Handheld torch and gouging

• 200 A handheld torch capable of cutting up to 75 mm (3") for demolition, scrapping and other heavy-duty cutting demands.
• Drag-cutting consumables make it easy to follow a line or template.
• Metal removal rate on mild steel up to 18,.7 kg/hr (41.2 lbs/hr).
• Plasma gouging can replace grinding or carbon arc gouging for many metal-removal applications. Plasma gouging produces less noise and fumes than carbon arc gouging and avoids risks of metallurgic problems from carbon contamination.

Cut with confidence

• Hypertherm Associates is ISO 9001: 2000 registered.
• Hypertherm Associates’ full-system warranty provides complete coverage for one year on the torch and leads and two years on all other system components.
• Hypertherm MaxPro 200 power supplies are engineered to deliver industry leading energy efficiency and productivity with power efficiency ratings of 90% or greater and power factors up to 0.98. Extreme energy efficiency, long consumable life, and lean manufacturing lead to the use of fewer natural resources and a reduced environmental impact.
