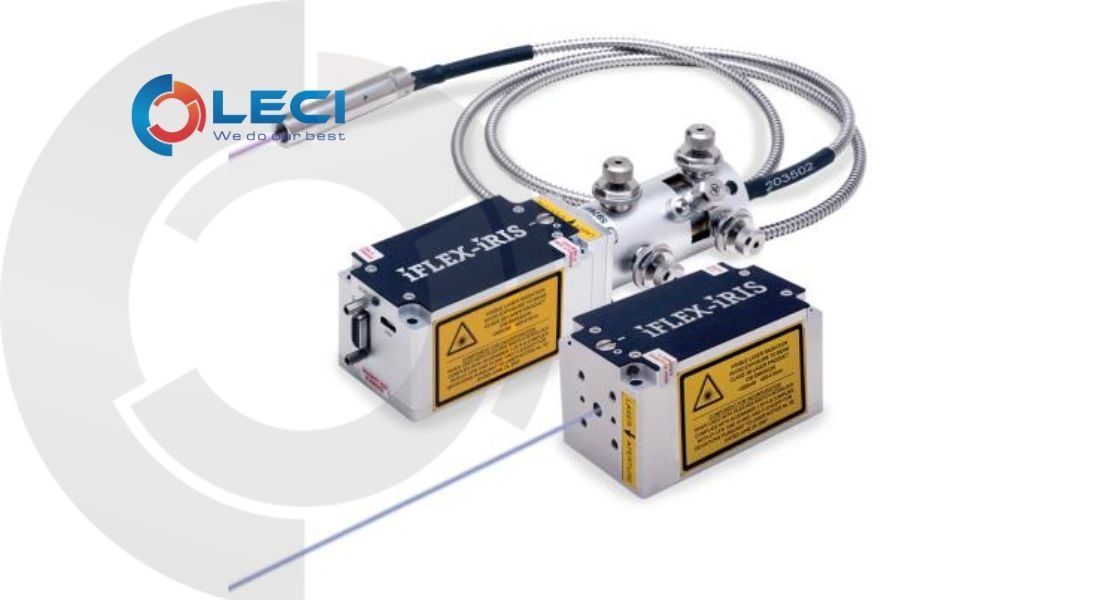

iFLEX-iRIS Compact Diode Laser Series

Our iFLEX-iRIS Lasers represent a compact, high-performance, laser illumination source delivering exceptional power stability and low amplitude noise for high-resolution bio-imaging,...

Liên hệ để biết giá

Tình trạng: Còn hàng Thương hiệu: Excelitas

Mô tả sản phẩm Specifications Features Applications

Our iFLEX-iRIS Lasers represent a compact, high-performance, laser illumination source delivering exceptional power stability and low amplitude noise for high-resolution bio-imaging, ophthalmology and metrology applications. iFLEX-iRIS Lasers feature on-board Closed-Loop Modulation and are available in wavelengths from 375-852 nm at power levels up to 200 mW. They are ideal for both free-space use or with our kineFLEX polarization-maintaining fiber-delivery system.

Manufacturer: Excelitas

Ultra-Stable Closed-Loop Modulation

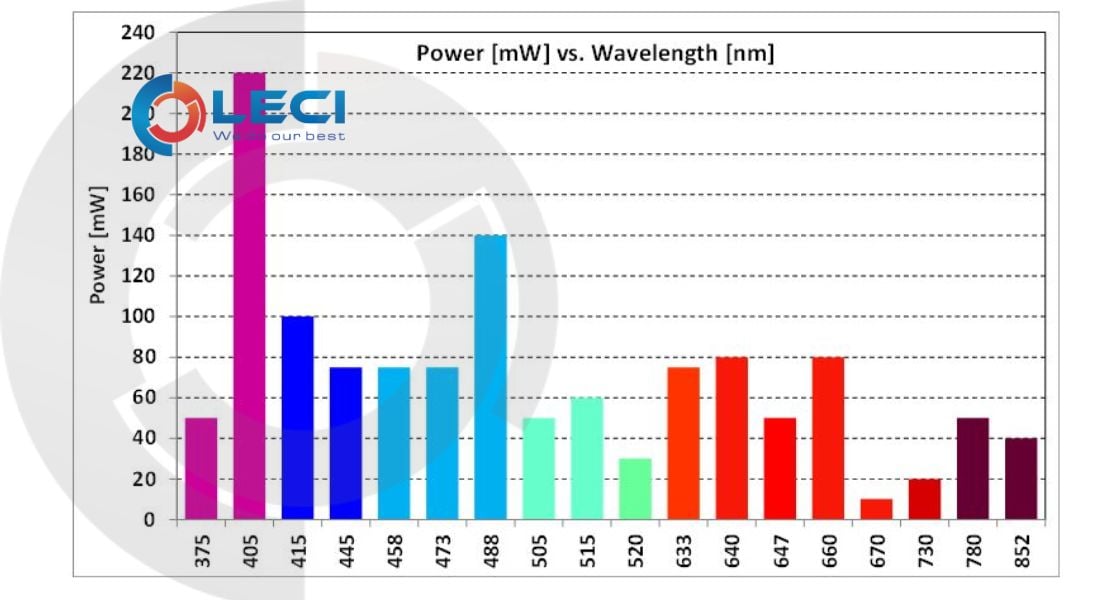

IF_iFLEX-iris_Laser WavelengthvsPower_Chart - Updated
iFLEX-iRIS comes standard with Closed-Loop Modulation (CLM) for further performance stability with very low periodic noise. CLM allows iFLEX lasers to operate with automatic power control feedback in all modes of operation; CW, digital-, analogue- and dual-mode modulation. iFLEX CLM maintains reliable power stability from 0.1–100% throughout the extended service life.

For Free-Space or Flexible Fiber-optic Delivery

Our modular kineFLEX single-mode, polarization-maintaining fiber optic delivery system option allows iFLEX-iRIS to be located remotely from the sample, in an easily accessible, safe location. The kineFLEX fiber delivery system provides additional spatial filtering of the laser output for almost perfect Gaussian beam quality. Now you can replace the laser source without time-consuming repositioning and alignment to the subject.

iFLEX-iRIS-Compact-Diode-Laser-Series-1

Contact infomation:

LECI Co., Ltd
Room 1901, Saigon Trade Center, No. 37 Ton Duc Thang Street, Saigon Ward, Ho Chi Minh City, Vietnam
Long Bien, Ha Noi, VN.
Phone: (+84) 901442689 (WhatsApp)
Hotline: 02822202988
Website: lecilaser.com

Wavelengths: 375 nm - 852 nm
Power options: ≤ 220 mW
Output beam: 0.7 ± 0.2 mm
Beam circularity: ≤ 1:1.2
Spatial mode, TEM∞: M2 < 1.2 typ
Power stability (8hrs): < 0.5%
RMS noise (20 Hz - 20 MHz): <0.05%
Laser module (mm): 70L x 40W x 38H

Highly stable output
New First-in-class Closed-Loop Modulation
Exceptional Power Stability
Ultra-low periodic noise
Extreme low RMS and peak-to-peak noise
Integrated electronics & TEC control
Wavelengths: 375 nm - 852 nm
Power options up to 220 mW
Output Beam 0.7 ± 0.2 mm
Operating Mode CW with output power adjustment options
Single-mode, linearly polarized output beam
Plug-and-play free-space or fiber-coupled delivery
CDRH Compliant interlock power supply

Metrology
Flow cytometry
Confocal and laser scanning microscopy
Dynamic light scattering
Forensics
TIRF
High-throughput screening
High-resolution imaging systems
DNA screening
Genomics
Ophthalmology
