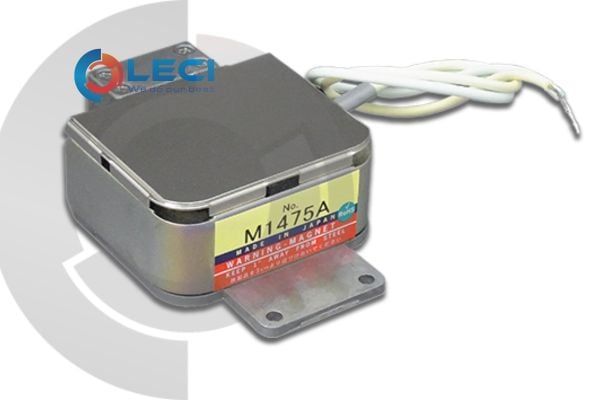

M1475A Magnetron - Marine Radar
- Manufacturer: Nisshinbo Micro Devices Inc. (formerly NJRC)
- Application: X-band radar transmitter
M1475A Magnetron is a high-power magnetron designed for fixed-frequency operation in X-band radar systems. The device operates within the frequency range of 9345 to 9405 MHz and delivers a peak output power of 25 kW. It supports a duty cycle of 0.001 and a pulse duration of 1.00 microsecond. This model meets RoHS compliance requirements and is suitable for maritime radar applications requiring stable and high-intensity microwave output.
The M1475A magnetron is designed to operate with a peak anode voltage of 8 kV and a peak anode current of 8 A. The heater voltage is rated at 6.3 V during preheating with a heater current of 0.52 A. The RF output is configured through a WR90 waveguide and an UG-135/U equivalent RF flange. Power is supplied via lead wire interface.
The magnetron is air-cooled and weighs approximately 0.7 kilograms. It is suitable for replacement or integration into radar systems where long-term reliability and fixed-frequency precision are critical.
