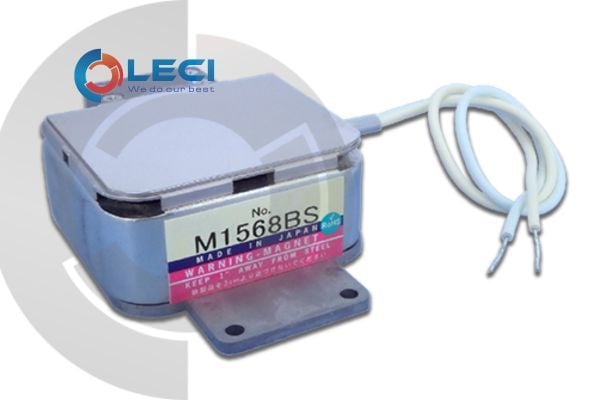

The M1568BS Magnetron is a high-power X-band magnetron designed to deliver reliable and powerful performance for advanced radar systems. Operating within a frequency range of 9380 MHz to 9440 MHz, it provides a peak output power of 25 kW, making it well-suited for demanding applications such as marine radar and weather surveillance.
This magnetron features strong electrical performance, including a heater voltage of 6.0V to 6.6V and a peak anode voltage ranging from 7.2kV to 8.5kV. The M1568BS is engineered to ensure precise signal generation, with a pulse duration between 0.05 μs and 1.2 μs.
>> Marine Radar components
Built to handle intensive operational conditions, the M1568BS supports a peak anode current between 6.0A and 10.0A, an anode temperature of up to 110°C, and a voltage rise rate of 100 kV/μs. It maintains a duty cycle of 0.001 and ensures optimal signal transfer with a maximum VSWR of 1.5:1 at the output coupler.
Thanks to its durable construction and dependable performance, the M1568BS is an essential component in high-frequency radar systems requiring stable and high-powered output across global radar applications.
>> See more: M1475A Magnetron, MG5436 Magnetron, M1636 Magnetron, M1568B(J) Magnetron, M1458A Magnetron, M1568BS Magnetron, M1623 Magnetron, M1555 Magnetron
Specifications
- Frequency Range: 9380 – 9440 MHz
- Peak Output Power: 25 kW
- Heater Voltage: 6.0V – 6.6V
- Heater Current: 0.43A – 0.6A
- Peak Anode Voltage: 7.2kV – 8.5kV
- Peak Anode Current: 6.0A – 10.0A
- Pulse Duration: 0.05 μs – 1.2 μs
- Duty Cycle: 0.001
- Maximum Anode Temperature: 110°C
- VSWR at Output Coupler: 1.5:1 max
- Rate of Rise of Voltage Pulse: 100 kV/μs
- Maximum Anode Power Input: 75 kW
