Microfocus X-ray Source L12161-07

• Tube Voltage 150 kV
• Type Sealed type
• Tube Voltage Operational Range 40 kV to 150 kV
• Maximum Output 75 W
• X-ray Focal Spot Size 5 μm (at 4 W)
• X-ray Beam Angle (Coned) 43 degree
• Focus to Object Distance (FOD) 17 mm

• Focal spot size : 5 μm (at 4 W)
• High power : Maximum output 75 W
• External control via RS-232C interface
• High speed ramping-up
• No high voltage cable connection required

• Non-destructive inspection
• X-ray CT

[Applicable objects]

• Semiconductor device
• Electronic component
• Printed circuit board
• Ceramic
• Plastic component
• Die casting
• Metal component

X-RAY TUBE UNIT L8122-01 (Unit mm)

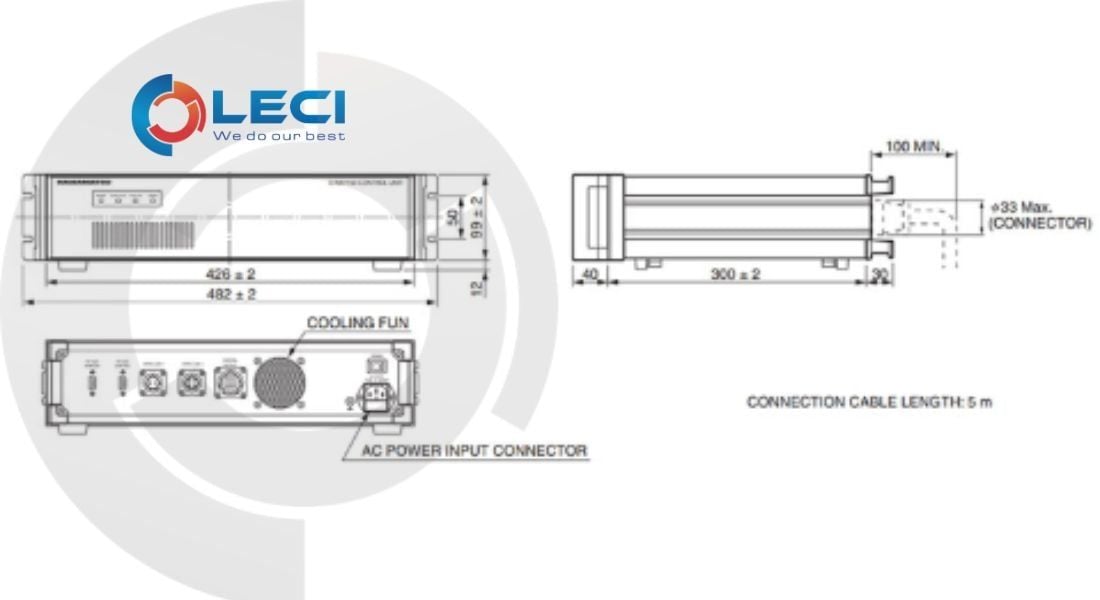

X-RAY CONTROL UNIT C12163 (Unit mm)

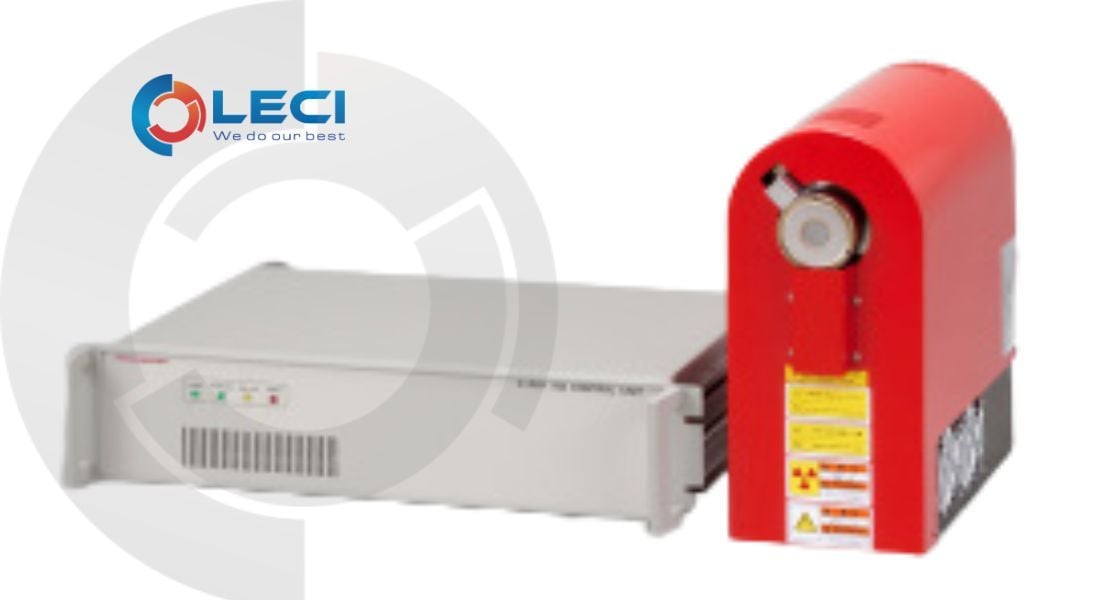

System configuration of L12161-07 : X-ray tube unit(L8122-01) + X-ray control unit(C12163) + turbo pump set + accessories
