Small Area UV LED Curing

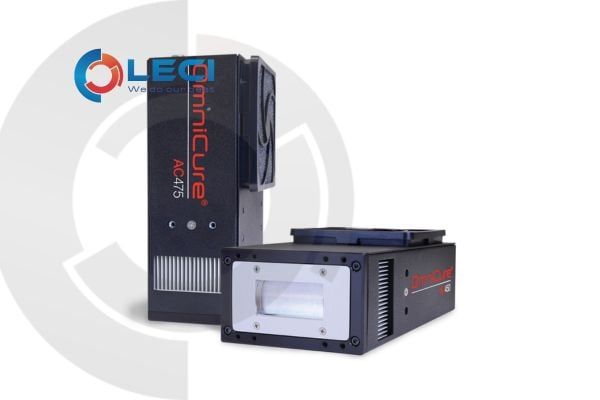

The OmniCure AC450/P and AC475/P air-cooled UV LED small area curing systems provide high irradiance (8 W/cm2) at flexible working distances.
Specifications:
| | AC450 | AC475 |
| Active Optical Area | 50 x 25 mm | 75 x 25 mm |
| LED Peak Wavelengths | 365 nm ± 5 nm, 395 nm ± 5 nm |
| Typical Peak Irradiance (W/cm2) | 365 nm | 395 nm | 365 nm | 395 nm |
| Working Distance | 1 mm | 8.0 | 8.2 | 8.0 | 8.2 |
| 10 mm | 6.0 | 6.2 | 6.0 | 6.2 |
| 20 mm | 4.2 | 4.5 | 4.2 | 4.5 |
| 30 mm | 2.9 | 3.2 | 2.9 | 3.2 |
| 40 mm | 2.0 | 3.2 | 2.0 | 3.2 |
| 50 mm | 1.5 | 1.7 | 1.5 | 1.7 |
| Optical Power | 87 W | 90 W | 130 W | 135 W |
| Power Consumption | 330 W | 480 W |
| Longitudinal Uniformity | Better than ± 10% |
| Operating Voltage | 48 V DC ± 2 V |
| Dimensions (L x W x H) | 110 x 68 x 190 mm |
| Weight (kg) | 1.1 kg (2.4 lbs) |
| Cooling | Air |
| Acoustic Noise | < 65 dBA, load adapting |
| Life Expectancy | > 20,000 hours |
| Automation | Integrated PLC controls for UV intensity and system alarms |
| LED Warranty | 2 years or 10,000 service hours |
Applications:
- The AC450/P and AC475/P systems are ideally suited for the many medical device assembly and electronic applications requiring high throughput, low temperature curing of parts including:
- Medical: Anesthesia masks, blood bags, catheters, contact lens, endoscopes, filter sets, insulin pens, syringes and tube sets Electronics: Camera modules, Flex circuit assembly, chip on glass, hard disk drives, connectors, lens bonding, microspeakers
- and OLED manufacturing
- Printing: Coding, labels, product marking and serial numbers
