Small Area UV LED Curing

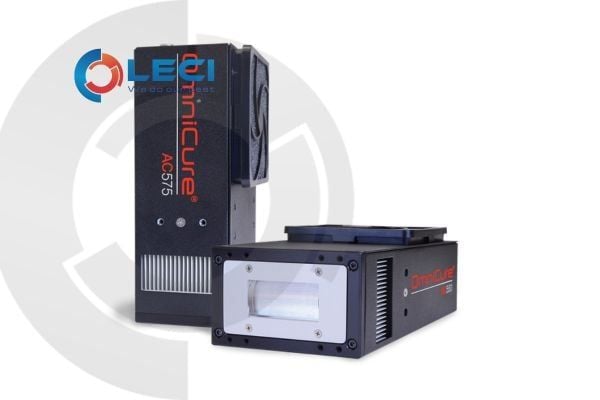

Designed with a unique combination of high output LEDs and custom optics that deliver up to 14W/cm2, the AC5 air-cooled UV LED system provides high irradiance at flexible working distances, enabling manufacturers to achieve outstanding productivity with reduced running costs.
The air-cooled, compact LED head design eliminates the need for external cooling or ozone extraction thus greatly simplifying integration. The AC5 Series UV LED curing systems can also be mounted in any orientation, with different wavelengths available for optimal flexibility.
Specifications:
| | AC550 / AC550P | AC575 / AC575P |
| Active Optical Area | 50 x 25 mm | 75 x 25 mm |
| LED Peak Wavelengths | 395 nm ± 5 nm |
| Typical Peak Irradiance (W/cm2) | 395 nm |
| Working Distance | 1 mm | 14 |
| 5 mm | 12.6 |
| 10 mm | 10.6 |
| 15 mm | 9.0 |
| 20 mm | 7.7 |
| 25 mm | 6.7 |
| Optical Power | 123 W | 184 W |
| Power Consumption | 330 W | 480 W |
| Longitudinal Uniformity | Better than ± 10% |
| Operating Voltage | 48 V DC ± 2 V |
| Dimensions (L x W x H) | 110 x 68 x 190 mm |
| Weight (kg) | 11.1 kg |
| Cooling | Air |
| Acoustic Noise | < 65 dB |
| Life Expectancy | > 20,000 hours |
| Automation | Integrated PLC controls for UV |
| LED Warranty | 2 years or 10,000 service hours |
Applications:
- The AC550/P and AC575/P systems are ideally suited for the many medical device and electronic assembly applications requiring high throughput, low temperature curing of often plastic parts and printing applications including:
- Medical: Anesthesia masks, blood bags, catheters, contact lens, endoscopes, filter sets, insulin pens, syringes and tube sets Electronics: Camera modules, chip on glass, connectors, display bonding, flex circuit assembly, hard disk drives, lens bonding
- and microspeakers
- Printing: Coding, labels, product marking and serial numbers
- Industrial: Wood coatings, solar panels,UV film lamination, lens bonding, pressure sensitive adhesives
