Large Area UV LED Curing
Designed with a unique combination of high output LEDs and custom optics, these air- cooled UV LED systems provide high irradiance at flexible working distances, enabling manufacturers to achieve outstanding productivity with reduced
operating costs.

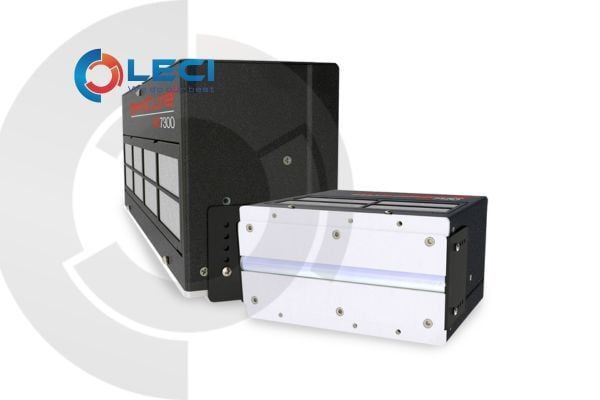

The OmniCure AC7150 and AC7300 provide exceptional uniformity over the full curing area for even and consistent curing. For even greater flexibility in curing larger parts, multiple systems can be joined together without comprising uniformity between systems.
Specifications:
| | AC7150 | AC7300 |
| Active Optical Area | 152 x 15 mm | 305 x 15 mm |
| LED Peak Wavelengths | 365 nm ± 5 nm, 395 nm ± 5 nm |
| Typical Peak Irradiance (W/cm2) | 365 nm | 395 nm | 365 nm | 395 nm |
| Working Distance | 1 mm | 2.8 | 5.2 | 2.8 | 5.2 |
| 10 mm | 2.6 | 4.4 | 2.6 | 4.4 |
| 20 mm | 2.1 | 3.6 | 2.1 | 3.6 |
| 30 mm | 1.6 | 2.9 | 1.6 | 2.9 |
| 40 mm | 1.2 | 2.4 | 1.2 | 2.4 |
| 50 mm | 1.0 | 2.0 | 1.0 | 2.0 |
| Optical Power | 40 W | 80 W | 80 W | 160 W |
| Power Consumption | 330 W | 650 W |
| Longitudinal Uniformity | ± 10% |
| Uniformity Between Adjoined Heads | Better than ± 10% at 20 mm or greater working distance |
| Operating Voltage | 48 V DC ± 2 V |
| Dimensions (L x W x H) | 152 x 100 x 148 mm | 305 x 100 x 148 mm |
| Weight (kg) | 1.8 kg (3.9 lbs) | 3.2 kg (7.0 lbs) |
| Cooling | Air |
| Acoustic Noise | < 65 dBA, load adapting |
| Life Expectancy | > 20,000 hours |
| Automation | Integrated PLC controls for UV intensity and system alarms |
| LED Warranty | 1 year; 10,000 service hours (light engine) |
Applications:
- The OmniCure AC7150 and AC7300 systems are ideally suited for the many medical device and electronic assembly applications requiring high throughput, low temperature curing of often plastic parts and printing applications including:
- Medical: Anesthesia masks, blood bags, catheters, contact lens, endoscopes, filter sets, hydrogels, insulin pens, syringes and tube sets
- Electronics: camera modules, chip on glass, display bonding, flex circuit assembly, hard disk drives microspeakers, optical film coating, touch panels and OLED manufacturing
- Automotive: Automotive filers, automotive gaskets and sealing and sealants
- Optical Fiber: Fiber coating, fiber connectors and fiber ribbon
- Industrial: Lens bonding, pressure sensitive adhesives, solar panels and UV film and lamination
