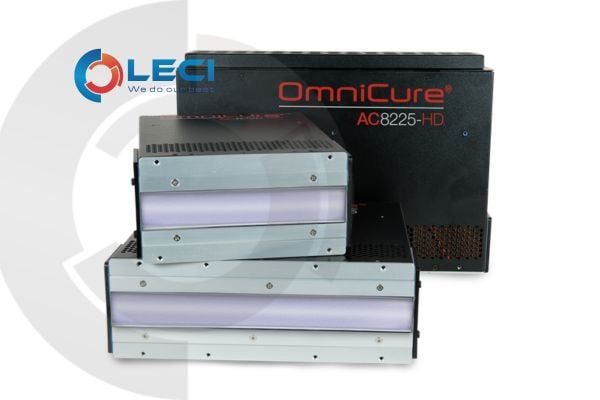

The OmniCure AC8-HD Series of products bring air-cooled UV LED curing to the next level. These systems deliver an outstandingly high optical dose, and are designed with patented technology that enables unbeatable uniformity of output across the irradiation area. Offering three standard cure widths – 6” (150 mm), 9” (225 mm), and 12” (300 mm), these units can be adjoined to customize and achieve countless curing sizes without any compromise in uniformity.
The AC8-HD systems deliver over 15 W/cm2 peak irradiance and nearly double the dose of the AC8 Series of products, making these systems ideal for applications that demand high dosage.
Applications:
- The AC8150P-HD, AC8225P-HD, and AC8300P-HD are ideally suited for a wide range of medical, industrial, electronics, printing and coating applications such as the following:
- Printing: Wide format graphics, coding, labels, product marking serial numbers, posters and signage, packaging, screen, bottle printing Medical: Anesthesia masks, blood bags, catheters, contact lens, endoscopes filter sets, insulin pens, syringes, tube sets
- Electronics: Camera modules, chip on glass, connectors, display bonding, OLED display wafer tape removal, flex circuit assembly, hard disk drives, lens bonding, micro-speakers
- Industrial: Wood coatings solar panels, UV film lamination, lens bonding, pressure sensitive adhesives
Specifications:
| | AC8150P-HD | AC8225P-HD | AC8300P-HD |
| LED Peak Wavelengths | 385 nm +/-5 nm, 395 nm +/- 5 nm, 405 nm +/- 5 nm |
| Active Optical Area | 150 x 30 mm | 225 x 30 mm | 300 x 30 mm |
| Typical Power Consumption | 1500 W | 2250 W | 3000 W |
| Typical Peak Irradiance (W/cm2) |
| Working Distance | 1 mm | 15.1 | 15.1 | 15.1 |
| 10 mm | 12.2 | 12.2 | 12.2 |
| 20 mm | 8.7 | 8.7 | 8.7 |
| 30 mm | 6.7 | 6.7 | 6.7 |
| 40 mm | 5.0 | 5.0 | 5.0 |
| 50 mm | 4.0 | 4.0 | 4.0 |
| Optical Power | 650 W | 975 W | 1300 W |
| Longitudinal Uniformity | Better than +/-10% |
| Operating Voltage | 48 V DC +/- 2 V |
| Dimensions (L x W x H) | 159 x 80 x 218 mm | 235 x 80 x 218 mm | 311 x 80 x 218 mm |
| Weight (kg) | 2.8 | 3.7 | 5.2 |
| Cooling | Air |
| Life Expectancy | > 20,000 hours |
| Automation | Integrated PLC controls for UV intensity and system alarms |
| LED Warranty | 2 years or 10,000 service hours |
