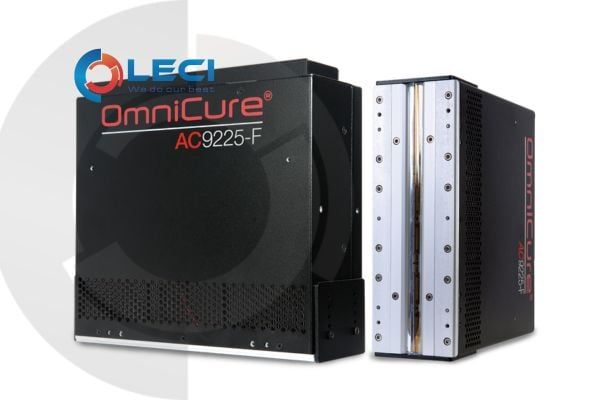

OmniCure AC8225-F+ / AC9225-F

Air-Cooled UV LED Solutions for Fiber Curing Applications
The OmniCure AC8225-F+ and AC9225-F UV LED curing systems are specifically designed for fiber curing applications. Featuring a custom optical design to enhance output and optimize delivery of UV onto the fiber, the OmniCure AC8225-F+ and AC9225-F provide an air-cooled, high output solution to meet the market demand for increased process speeds. The AC8225-F+ delivers up to
16 W/cm2 peak irradiance at a 10 to 18 mm working distance while the AC9225-F offers up to 20 W/cm2 peak irradiance. Featuring a
replaceable outer window and the same mechanical enclosure, the OmniCure AC8225-F+ and AC9225-F fiber curing solutions enable customers to easily scale production speeds without complex changes in integration. These systems utilize patented LED control technology to provide exceptional uniformity and enable multiple systems to be joined together to increase the cure area width while maintaining uniformity across all systems.
OmniCure AC8225-F+/AC9225-F UV LED fiber curing systems reduce electrical power consumption by up to 60% compared with traditional arc lamp systems for exceptional cost savings and no compromises in line speed. With over 40,000 hours of LED lifetime and no replacement parts, maintenance costs are even further reduced.

Specifications:
