Large Area UV LED Curing

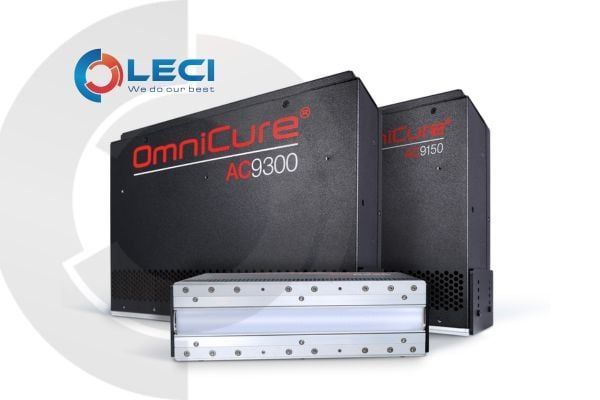

The OmniCure AC9 Series are high-power UV LED Curing Systems delivering over 14 W/cm2 peak irradiance for fast curing of inks, adhesives and coatings. The AC9 Series’ innovative design features a high-performing, small form-factor, air-cooled solution to enable fast line speeds in industrial manufacturing and printing.
A patented process for addressing inpidual UV LED module outputs provides exceptional uniformity for even curing over the entire area. The scalable design allows for multiple heads to be adjoined for customization and flexibility without compromising
output uniformity.
Applications:
- The AC9150/AC9150P, AC9225/AC9225P & AC9300 and AC9300P systems are ideally suited for a wide range of applications such as digital printing, industrial and electronics manufacturing, touch panel/display, solar panel, conformal coatings and automotive.
- Printing: Wide format graphics, coding, labels, product marking, serial numbers, posters and signage, packaging, screen and bottle printing
- Medical: Anesthesia masks, blood bags, catheters, contact lens, endoscopes, filter sets, insulin pens, syringes and tube sets
- Electronic: Camera modules, chip on glass, connectors, display bonding, wafer tape removal, flex circuit assembly, hard disk drives, lens bonding and microspeaker
- Industrial: Wood coatings, solar panels, UV film lamination, lens bonding, pressure sensitive adhesives, cable marking and ribonning
Specifications:
| | AC9150/AC9150P | AC9225/AC9225P | A9300/AC9300P |
| LED Peak Wavelengths | 395 nm |
| Active Optical Area | 150 x 25 mm | 225 x 25 mm | 300 x 25 mm |
| Power Consumption | 1058 W | 1587 W | 2116 W |
| Typical Peak Irradiance (W/cm2) | 395 nm |
| Working Distance | 1 mm | 14 | 14 | 14 |
| 5 mm | 12.6 | 12.6 | 12.6 |
| 10 mm | 10.6 | 10.6 | 10.6 |
| 15 mm | 9.06 | 9.06 | 9.06 |
| 20 mm | 7.7 | 7.7 | 7.7 |
| 25 mm | 6.7 | 6.7 | 6.7 |
| Optical Power | 365 W | 574 W | 730 W |
| Longitudinal Uniformity | Better than +/-10% |
| Operating Voltage | 48 V DC +/- 2 V |
| Dimensions (L x W x H) | 159 x 80 x 218 mm | 235 x 80 x 218 mm | 311 x 80 x 218 mm |
| Weight (kg) | 1.8 | 2.7 | 3.6 |
| Cooling | Air |
| Life Expectancy | > 20,000 hours |
| Automation | Integrated PLC controls for UV intensity and system alarms |
| LED Warranty | 2 years or 10,000 service hours |
