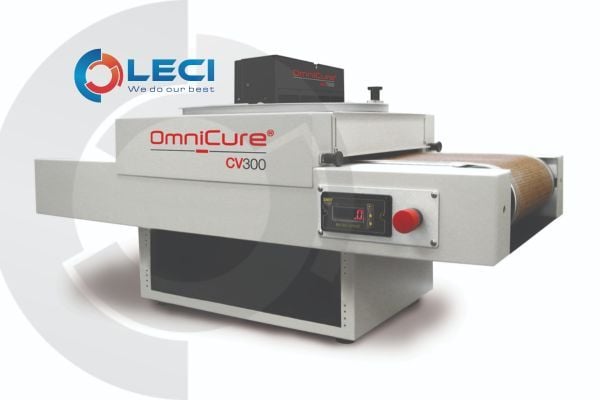

Designed to complement the OmniCure AC Series of high power UV LED area curing systems, the OmniCure CV300 is a versatile conveyor system suitable for production, laboratory, and research and development applications. The CV300 can handle substrates up to 310 mm (12.2”) wide on its open mesh Teflon coated fiberglass belt with an effective curing area of up to 300 mm (12”) depending on the OmniCure LED system being utilized. The unique mounting design of the OmniCure CV300 conveyor allows for multiple configurations of the OmniCure AC Series high power UV LED curing systems. The length of the LED systems can be positioned perpendicular to the conveyor belt’s direction of travel or in
15 degree steps towards a parallel orientation.
Features:
- 12’ Wide belt: Adaptability to multiple applications
- Adjustable speeds from 1 m/min to 14.5 m/min (3 ft/min to 48 ft/min) increments: Flexibility in setting specific speeds for each application
- Adjustable height from 30 mm and 60 mm in 10 mm increments: Suitable for use with large parts or longer working distances
- Rotating mounting system can align LED heads perpendicular to belt’s direction of travel: Extendable in width for curing of larger parts
- Rotating mounting system can align LED heads parallel to belt’s direction of travel: Maximum dose for curing smaller parts at faster speeds
Specifications:
| OmniCure CV300 |
| Overall Dimensions (LxWxH) | 1070 mm (42.2") x 540 mm (21.2") x 440 mm (17.3") |
| Belt Width | 305 mm (12") open mesh Teflon® coated fiberglass |
| Clearance | 385 mm |
| Belt Speed | 1 m/min to 14.5 m/min (3 ft/min to 48 ft/min) |
| Height Adjustment | 30 mm to 60 mm in 10 mm increments |
| Head Angle Adjustment | 0 to 90 degrees relative to belt travel direction in 15-degree increments |
| Weight | 34 kg (74 lbs) |
| Electrical | 100-240 V AC, 50/60 Hz, single phase |
| Controls | Power on, Speed adjust, LED on |
