Intelligent External PLC Controller for AC Series UV LED Curing Systems
Only available in the USA. China Export (Not CE)

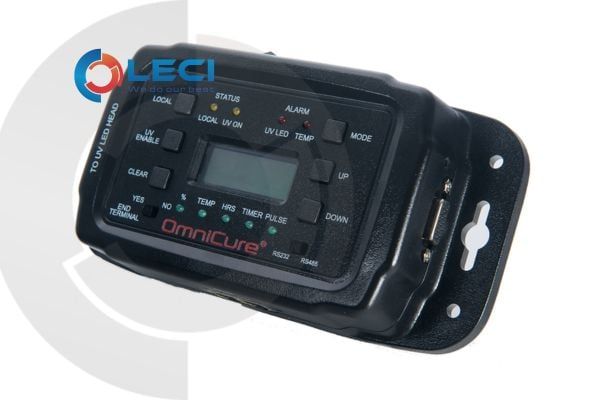

The OmniCure PLC2000 is an innovative product accessory specially designed to complement the OmniCure AC Series of high power UV LED curing systems. When connected to an OmniCure AC Series UV LED head, this multi-purpose external controller device enables the immediate ability to intelligently manage, monitor and control an LED system.
Providing unparalleled control of the OmniCure UV LED lamp systems, the PLC2000 can be used to dynamically adjust the output intensity, exposure time, and on/off capabilities while providing system information and error monitoring. With flexibility to operate the PLC2000 locally or remotely through an automated system, the portable and compact PLC controller is well suited for use in manufacturing environments, laboratory and research & development applications.
Specifications
| Outer Dimensions (L x W x H) | 180 mm (7.07”) x 91 mm (3.57”) x 41 mm (1.63”) |
| Connectivity | HD15 for connection to UV LED head and for customer PLC control port RJ11 – S485 daisy-chain in and out |
| Controls | Local: LED On/Off, Intensity, exposure timer, pulse mode operation Remote: Function programmability via PLC commands |
| Alarms | Temperature, drive current continuity |
| Door Lock | Integrated safety feature to prevent accidental UV exposure |
