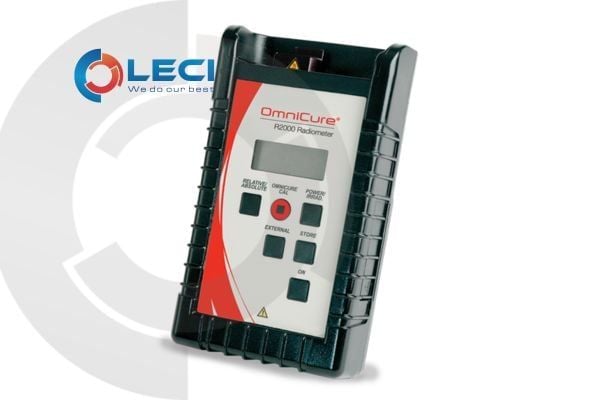

Radiometry is an essential technique for measuring the light output from a UV curing system in order to maintain a repeatable process. The OmniCure R2000 UV Radiometer can be combined with the OmniCure S2000 Elite/ S2000 UV Spot Curing System to provide a complete curing station with unmatched control and repeatability. Special electronics built into the R2000 UV Radiometer also allow for the connection of custom sensors that measure light energy directly at the cure site or within cure ring bonding fixtures.
SPECIFICATIONS
| Wavelength Range | 250 nm - 1 µm (with suitable calibration) |
| Maximum Range | Power: 1 mW - 12 W Irradiance: 5 mW/cm2 - 60 W/cm2 (with 5 mm Light Guide) |
| Resolution | Power: 1 mW Irradiance: 5 mW/cm2 (with 5 mm Light Guide) |
| Accuracy | +/- 5% typical; +/- 10% maximum |
| Auto-ranging | Power: 1-990 mW; 1.0-12.00 W Irradiance: 5-990 mW/cm2; 1.0-60 W/cm2 |
| Battery | 3.6 V Li |
| Battery Life | 2 years, typical (intermittent use) |
| Functions | Irradiance Measurement, Power Measurement, Automatic Light Guide Detection, Relative Mode, OmniCure Calibration, Store Data Points, External Input, On Button, Auto Off, Calibration Due Message |
| Certification | CE marked; complies with IEC, Canadian and US Standards, RoHS compliant |
| Dimensions (L x W x H) | 7 1/2” x 4 3/8” x 2” (19.0 cm x 11.1 cm x 5.0 cm) |
| Weight | 1 lb (450 g) |
| Warranty | 1 year |
Part Number: 010-00208, 019-01033, 019-01041, 019-01042, 019-01043, 019-01050, 019-01051
| Part Number | Description |
| 010-00208 | OmniCure R2000 Radiometer |
| 019-01033 | Radiometer lamp output adaptor |
| 019-01041 | Proximity measurement adaptor |
| 019-01042 | Light Guide Adaptor, 8 mm (Green) |
| 019-01043 | Light Guide Adaptor, 2 mm (Gold) |
| 019-01050 | Light Guide Adaptor, 3 mm (Red) |
| 019-01051 | Light Guide Adaptor, 5 mm (Blue) |
OmniCure Cure Site Radiometer
The OmniCure UV Cure Site Radiometer provides ultimate process control by measuring the output power of a light guide or optical accessory directly at the bonding site.
