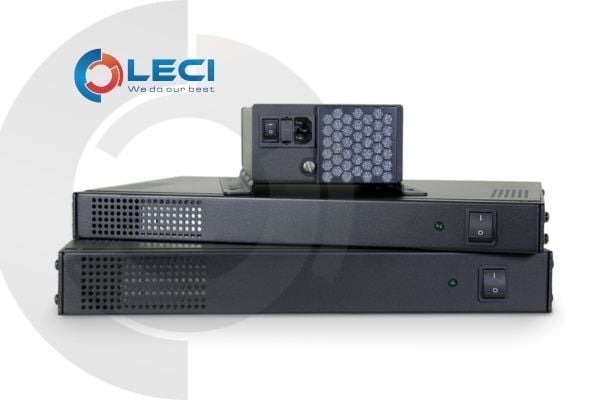

OmniCure SC Series System Controllers: The OmniCure SC Series system controllers are tailored specifically for the OmniCure AC Series UV LED curing products. Designed with application flexibility in mind, customers can select the system controller that best meets the needs of their particular curing application. With a small form factor, the OmniCure SC0650 is suitable for many single LED head applications with minimal existing customer infrastructure requirements and quickest commissioning time.
Specifications
| | SC0650 | SC0750 | SC1000 | SC2000 | SC3000 |
| Operating Temperature Range | 10-40 ºC |
| Dimensions* (L x W x H) | 293 x 190 x 83 mm | 341 x 445 x 44 mm | 341 x 445 x 67 mm |
| Weight | 2.0 kg (4.5 lbs) | 3.9 kg (8.6 lbs) | 6.5 kg (14.3 lbs) |
| Input Voltage | 100-240 VAC 50/60 Hz | 200-240 VAC 50/60 Hz |
| Max. AC Input Current | 7.5-3.1 A | 9-4.3 A | 12-6.5 A | 13-9.6 A | 15.6-13 A |
| Protection Rating | 8 A | 10 A | 13 A | 16 A |
| | Fuse | Circuit Breaker |
| Max. DC Power | 650 W | 750 W | 1000 W | 2000 W | 2800 W |
| Operating Voltage | 48 V DC ± 1 V |
| Max. DC Current | 13.5 A | 15.7 A | 21 A | 41.5 A | 58.3 A |
| # of DC Output Connectors | 1 | 2 | 4 |
| Certifications | CE, RoHS, WEEE |
