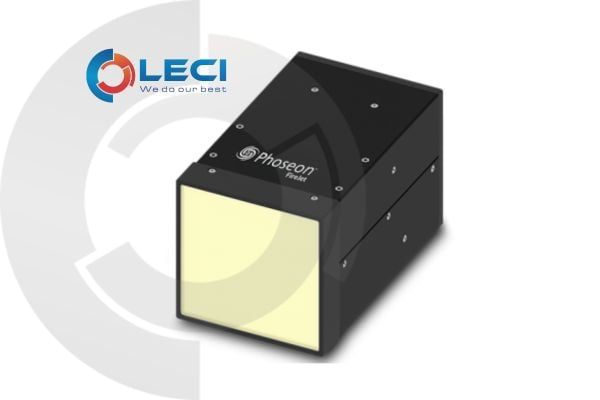

Phoseon FireJet FJ801 UV LED Large-Area Curing System is an advanced solution engineered for adhesive and coating applications that require low irradiance and long dwell time across large-scale production lines.
Equipped with a modern touch controller, the FJ801 simplifies operation through an intuitive touchscreen interface. With no knobs, buttons, or moving parts, the controller is compact, easy to store, and highly durable. It provides real-time display of key process parameters, including lamp temperature and total operating hours, ensuring safe and reliable performance.
Designed for area-curing applications such as micro-speaker assembly and camera module manufacturing, the FJ801 features a modular architecture that can be scaled from a 100 mm × 100 mm base area, delivering contiguous and uniform UV illumination.
Available in 365, 385, 395, and 405 nm wavelengths, the FJ801 ensures process stability through patented TargetCure™ Technology, providing precise and predictable UV output for consistent curing results. The FJ801 controller is also backward compatible with the FJ800 light source, ensuring seamless system integration.
Key Features
Peak Irradiance: 1.7 W/cm² at 385, 395, and 405 nm
Peak Irradiance: 1.2 W/cm² at 365 nm
Patented TargetCure™ Technology: Ensures precise and stable UV output for repeatable curing quality
Touch Controller: Compact, space-saving design with intuitive operation and real-time process monitoring
Scalable Architecture: Enables custom curing area configurations for large or specialized applications
Exceptional Optical Uniformity: Delivers consistent illumination for superior curing performance
Optimized for Large-Area Manufacturing: Ideal for production environments requiring high reliability and uniform curing coverage
