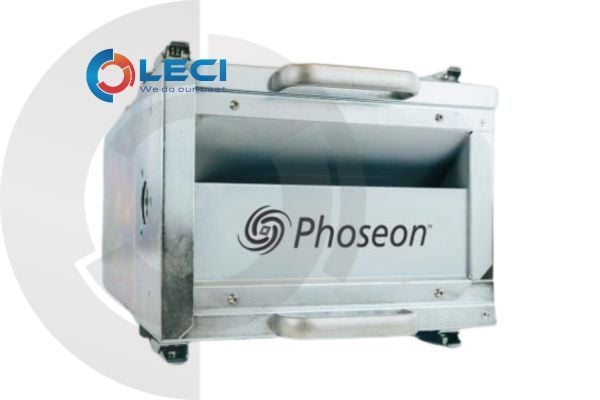

Phoseon Optical Fiber UV LED Curing System is a high-performance UV LED solution designed specifically for optical fiber coating applications, offering exceptional curing efficiency and process control.
Featuring a three-part reflector assembly, the system increases fiber irradiance by up to 20%, enabling faster processing speeds and enhanced productivity. The fiber-optimized UV LED light source, combined with patented reflector technology, directs UV light evenly around the entire circumference of the fiber to ensure uniform coating and consistent curing quality.
A finely tuned optical system and proprietary light management design deliver superior process stability and uniform results across all curing operations. The system’s UV LED source and Fiber Reflector Unit (FRU) are housed within a robust IP52-rated enclosure, providing protection against liquid spills and environmental exposure.
The use of LED technology significantly reduces energy consumption and lowers the surface temperature of the workpiece, improving operational safety and efficiency. For applications requiring advanced process monitoring, the FRU includes a dedicated mounting feature for irradiance sensors, and integrated hardware simplifies retrofit installation into existing production towers.
Key Features
Peak Irradiance: Up to 30 W/cm²
Cooling Options: Air- or water-cooled configuration
Three-Part Reflector Assembly: Increases irradiance by 20% for faster line speeds
Cylindrical UV Focus: Delivers uniform light distribution around the fiber
Ultra-High-Speed Curing: Optimized for demanding fiber manufacturing processes
IP52 Enclosure: Protects against liquid spills and environmental contaminants
