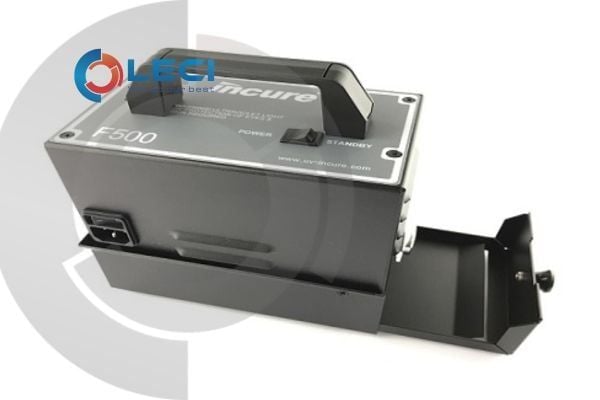

The F500 is a portable UV curing lamp that can handle a variety of UV curing applications due to its versatility. With an effective curing area of 5" x 3", it is ideal for batch or conveyor mounted curing of small parts. Weighing-in at a mere 6 pounds, the system is also perfect for applications where frequent transportation is involved. The unit features a lightweight removable head, which serves as a self-contained handheld curing lamp during operation. The bottom half of the unit is an accessories carrying case for the headrest, UV glasses, power cord and adhesives, and is not required during operation. The arc lamp is powered by the state of the art UV Power-Plus Lamp Driver. Simple yet high-tech design, the F500 is extremely user-friendly and reliable, requiring virtually no learning curve or setup time.
High-tech design, the F500 is extremely user-friendly and reliable, requiring virtually no learning curve or setup time.
| Configuration | Specifications |
| Type of Lamp | ARC Focused |
| Peak Intensity | Distance from Lamp Base 1.0: UVA:535, UVV:480 mW/cm2
Distance from Lamp Base 1.5: UVA:500, UVV:450 mW/cm2
Distance from Lamp Base 2.0: UVA:465, UVV:420 mW/cm2
Distance from Lamp Base 2.5: UVA:435, UVV:390 mW/cm2 |
| Intensity Adjustment | No |
| Optional Wavelengths | 254, 365 |
| Working Distance | 1" |
| Expected Bulb Life | >1000 hrs |
| Intensity Decay Over Life | 45% |
| Curing Box with Interlock Safety Feature(optional) | Hand-Held |
| Curing Box Adjustable Heights | 1.75", 3.5", 5.25", 7.0", 9.0" |
| Temperature Management | Forced Air with Louvers |
| Power Input | 100-240V 50/60Hz Auto-Ranging |
| External Control Port | None |
Light Source Dimension
Power Supply Dimension
Curing Box Dimension | 8"x 5"x 6"
Integrated Light Source
54"x 14"x 12" |
| Ordering Part Number | F500-1A (with UVA Bulb), F500-1C (with UVC Bulb) |
Features of F500TM - Portable UV Lamp
- Removable Head Lamp
- Lamp Power Regulation
- Standby Mode
- Versatile
- Forced Air Cooling
