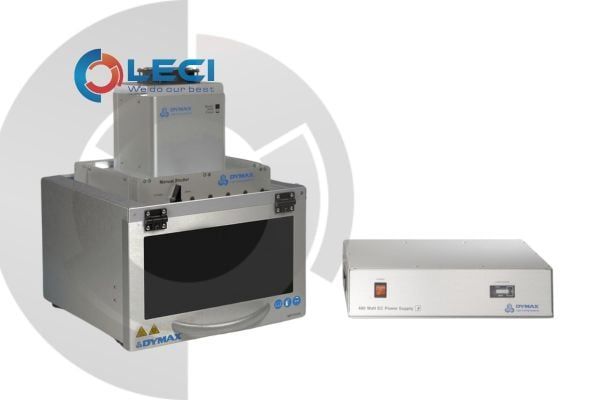

The Dymax 5000‑EC is a high-performance UV flood lamp system, powered by a 400 W metal halide bulb. Designed for rapid curing of UV adhesives, coatings, and inks, it delivers 225 mW/cm² of UVA over a 5” × 5” area, curing typically within 10–30 seconds.
Features
- High-intensity UVA output (320–390 nm) – 225 mW/cm²
- Fast cure times: 10–30 seconds for tack-free results
- 400 W bulb with 2,000-hour warranty, <20% intensity drop
- Rugged aluminum design, ideal for industrial use
- Flexible mounting for benchtop or conveyor integration
- Optional accessories: light shield, shutter assemblies, stands
Specifications
| Parameter | Value |
| UV Source | 400 W Metal Halide |
| Illuminated Area | 5″ × 5″ (12.7 × 12.7 cm) |
| UVA Intensity | 225 mW/cm² (320–390 nm) |
| Input Voltage | 90–265 VAC, 47–63 Hz |
| Bulb Warranty | 2,000 hours, <20% degradation |
| Reflector Size | 6.75″ × 6.75″ × 8″ |
| Housing Weight | 2.7 lbs (1.2 kg) |
| Power Supply Size | 12″ × 16″ × 4.25″ |
| Power Supply Weight | 12.25 lbs (5.6 kg) |
| Working Distance | 2″–6″ (5–15 cm) |
| Operating Environment | 10–40 °C; 0–80 % RH (non-condensing) |
