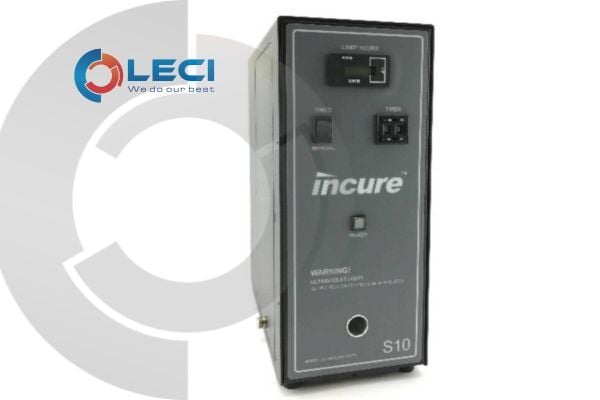

The S10 UV Spot Lamp delivers ultra-high-intensity curing power in a compact, portable format, optimized for precision UV applications in electronics, medical devices, dental labs, and industrial R&D environments. It combines fast cure times, user-friendly operation, and low ownership costs into one powerful tool.
Key features:
- >10,000 mW/cm² output intensity (320–390nm) – delivers rapid curing for UV adhesives and coatings.
- Compact design – just 273 × 126 × 295 mm and 7.5 lbs, ideal for limited bench space.
- Long lamp life – over 1,000 hours typical usage, with replaceable elliptical reflector and filtered light guide.
- Universal input voltage – 90–265VAC supports global use without voltage converters.
- Smart exposure control – built-in 1–99 second timer with foot pedal activation for hands-free operation.
- Efficient cooling – forced-air system with thermal shutdown at 65°C for safety and longevity.
- Dual safety interlocks – UV light auto-stops if guide is removed or cover opened.
Technical specifications:
| Specification | Value |
| AC Input Voltage | 90–265 VAC |
| Max Current | 2A |
| Frequency Range | 47–63 Hz |
| Lamp Type | 100W Mercury |
| Lamp Life | >1,000 hours |
| Output Intensity | >10,000 mW/cm² (320–390nm) |
| Dimensions (L×W×H) | 0.73″ × 4.95″ × 11.62″ (~273 × 126 × 295 mm) |
| Weight | 7.5 lbs (~3.4 kg) |
| Mounting Orientation | Vertical |
| Cooling System | DC Fan (forced-air) |
| Operating Temperature | +10°C to +40°C |
| Humidity Range | 30–75% operating, 10–100% storage |
| Warm-Up Time | 1–2 minutes |
| Restart Cooling Delay | 2–5 minutes typical |
Applications
- Electronics production: Spot curing of UV adhesives on PCBs, sensors, and micro-components.
- Medical/dental: Curing of dental resins or UV-reactive medical adhesives.
- Laboratories: R&D UV experiments, photochemical reactions.
- Restoration & art: Precision curing for antique repairs and surface treatments.
Benefits of using the S10 UV Lamp
- Boost throughput with faster curing cycles.
- Achieve consistent, high-quality bonding and coating.
- Avoid overheating and improve safety with IR-filtered light and thermal shutoff.
- Minimize downtime and cost with durable components and long lamp life.
