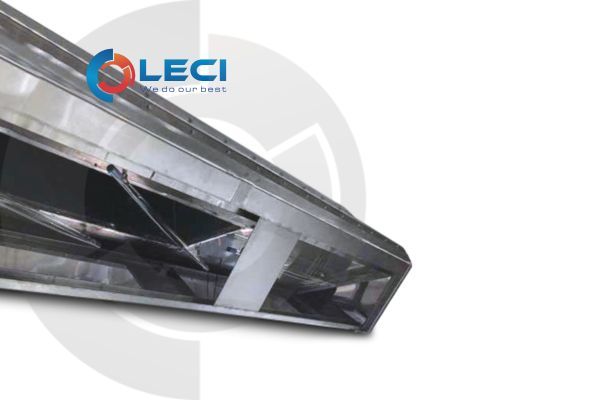

Smart Vacuum UV Control System

Our Smart Vacuum UV (VUV) Control System is specifically designed for effective aerosol treatment in kitchen exhaust fans and hoods....

Liên hệ để biết giá

Tình trạng: Còn hàng Thương hiệu: Excelitas

Mô tả sản phẩm Specifications Features Applications

Our Smart Vacuum UV (VUV) Control System is specifically designed for effective aerosol treatment in kitchen exhaust fans and hoods. This UV control system utilizes a VUV lamp that emits light at a wavelength of 185 nm, which effectively breaks down, destroys, and neutralizes grease and odors. This process significantly reduces fire risks and maintenance costs.

Fats and oils contribute to unpleasant odors and grease buildup in commercial kitchen exhaust fans and fume hoods. While grease separators can capture up to 95% of grease, they cannot eliminate all remaining deposits that accumulate on hood surfaces and exhaust ducts, creating serious fire hazards. No grease filter can fully prevent these deposits.

Our powerful VUV control system remains highly effective even at ambient temperatures of up to 80°C. With a long lifespan of up to 10,000 operating hours, it minimizes the frequency of service intervals. A single high-power vacuum UV lamp can replace up to six conventional low-pressure lamps, providing a more efficient solution. Additionally, it includes options for remote maintenance and fault diagnosis, further helping to save on costs.

>> See more: UVC Disinfection System, Smart vacuum UV control system, BlueLight Dairy UVC Flash Disinfection, BlueLight Small Area UVC flash Disinfection System, BlueLight SteriBelt UVC Disinfection System, Kepri UVC Upper-Air Disinfection System, Air D Disinfection System, BlueLight Hygenic UVC Disinfection System, BlueLight Premium UVC Disinfection System, Custom UVC LED Light Solutions

Contact infomation:

LECI Co., Ltd
R-1901, Saigon Trade Center Bld, 37 Ton Duc Thang Str., Ben Nghe W., Dist. 1, HCM City 70000, VN.
Long Bien, Ha Noi, VN.
Phone: (+84) 901442689 (WhatsApp)
Hotline: 02822202988
Website: lecilaser.com

	Noblelight UVCS 1.200	Noblelight UVCS 2.200	Noblelight UVCS 4.220	Noblelight UVCS 8.220
Exhaust air flow rate	< 1,500 m³ / h = 885 cfm	< 3,000 m³ / h = 1,700 cfm	< 8,000 m³ / h = 4,700 cfm	< 16,000 m³ / h = 10,000 cfm
Number of lamps	1	2	4	8
Recommended lamp	NIQ 170/90 XL	NIQ 170/90 XL	NIQ 200/120 XL	NIQ 200/120 XL
Energy consumption	200 W	420 W	950 W	2000 W
Max distance lamp to control cabinet	20 m	20 m	30 m	30 m
Ambient temperature	< 40° C	< 40° C	< 35° C	< 35° C
Size	400 × 300 × 210 mm	400 × 400 × 210 mm	400 × 600 × 210 mm	600 × 760 × 210 mm
Protection class	IP 65	IP 65	IP 54	IP 54

Reduces fire risk
Digital status display for smart operation and maintenance
Space-efficient: 1 lamp instead of a standard UV cassette with 4-6 low-pressure lamps.
Longlife coating for effective duration of up to 10,000 h
Ambient temperature: up to 80° C
Easy handling: 1 power supply and 2 spring clips per lamp required
Simple installation: lamp installs directly into the hood, while the power supply and control unit mount externally
Independent system: two separate installations can be operated independently via one control unit
Easy cleaning: Wipe lamp occasionally with damp cloth
Safe: No plug connections in the exhaust air flow, in which voltage flashovers could occur
