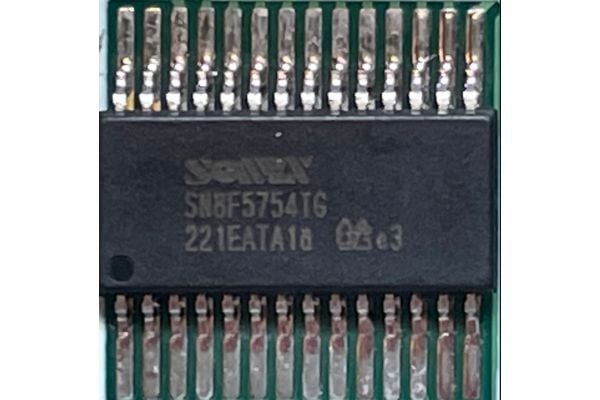

Name: SN8F5754TG
Part No.:
Manufacturer: Willas
SN8F5754 is an 8-bit architecture microcontroller which compatible with MCS-51 instruction set. It runs at up to 12.1 times faster than the original 8051 at the same frequency. Meanwhile, its advanced semiconductor technology provides a wide range operation voltage, from 1.8 V to 5.5 V, and working temperature between -40°C and 85°C at 8MHz CPU clock rate.
The microcontroller builds in 16 KB flash memory (IROM), 256 bytes internal RAM (IRAM) and 1024 bytes on-chip external RAM (XRAM).16 input channels/12-bit resolution ADC, 8-ch 1/2 VDD BIAS, 23 touch channels, 2-set PWM generator, interfaces (2 UARTs, I2C) and 3set 16-bit timers were designed to fit in the vast majority of consumer electronics, home automation and motor control applications.
Specifications:
- Enhanced 8051 microcontroller
- Up to 8 MHz flexible CPU frequency
- HardwareMultiplication/Division Unit
- 256 bytes internal RAM (IRAM)
- 1024bytes external RAM (XRAM)
- 16KB non-volatile flash memory (IROM)
- In-system program support
- 14interrupt sources with priority control
- 3external interrupts: INT0, INT1, INT2
- 3 set 8/16-bit timers
- 2set 8/16-bit PWM generators
- 12-bit SAR ADC with 16 external channels
- 8-ch1/2 VDD BIAS
- 23touch channels
- Programmablewatchdog and external reset
- 2UARTs, I2C interface with SMBus Support
- On-Chip Debug Support (single-wire debug interface)
- Wide supply voltage (1.8 V – 5.5 V)
- Wide working temperature (-40 °C to 85 °C)
