Name: SN8F5762TG
Part No.:
Manufacturer: Willas

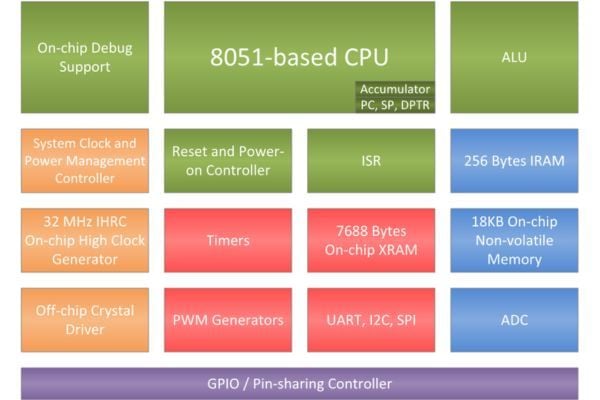

SN8F5762 is an 8-bit architecture microcontroller which compatible with MCS-51 instruction set. It runs at up to 12.1 times faster than the original 8051 at the same frequency. Meanwhile, its advanced semiconductor technology provides a wide range operation voltage, from 1.8 V to 5.5 V, and working temperature between -40°C and 105°C at 24 MHz CPU clock rate.
The microcontroller builds in a 18 KB flash memory (IROM), 256 bytes internal RAM (IRAM) and 768 bytes on-chip external RAM (XRAM). Furthermore, a 12 input channels/12-bit resolution ADC, 2-set PWM generator, interfaces (2 UARTs, I2C, SPI) and 16-bit timers were designed to fit in the vast majority of consumer electronics, home automation and motor control applications.
Specifications:
- Enhanced 8051 microcontroller
- Up to 24 MHz flexible CPU frequency
- Hardware Multiplication/Division Unit
- 256 bytes internal RAM (IRAM)
- 768 bytes external RAM (XRAM)
- 18 KB non-volatile flash memory (IROM)
- In-system program support
- 13 interrupt sources with priority control
- 3 external interrupts: INT0, INT1, INT2
- 2 set 8/16-bit timers
- 1 set 16 bit Capture timer
- 2 set 8/16-bit PWM generators
- 12-bit SAR ADC with 12 external channels
- Programmable watchdog and external reset
- 2 UARTs, I2C, SPI interface with SMBus Support
- On-Chip Debug Support (single-wire debug interface)
- Wide supply voltage (1.8 V – 5.5 V)
- Wide working temperature (-40 °C to 105 °C)
