TRUMPF Punching Tools
The CNC TRUMPF punching tools supplied by LECI are manufactured to European industrial standards, ensuring high mechanical strength, excellent load-bearing capability, and consistent precision throughout operation. Each tool is produced...
The CNC TRUMPF punching tools supplied by LECI are manufactured to European industrial standards, ensuring high mechanical strength, excellent load-bearing capability, and consistent precision throughout operation. Each tool is produced from premium-grade tool steel and undergoes advanced heat treatment to provide superior wear resistance, maintain sharp cutting edges, and deliver extended service life under high-duty production conditions.
TRUMPF Punching Tools
Punching tools for TRUMPF CNC machines supplied by LECI are fully compatible with all TRUMPF models, including both standard tooling and custom-designed dies tailored to specific production requirements. Their optimized design reduces cutting force, increases punching cycle speed, and enhances the surface quality of finished sheet-metal parts.
LECI provides expert consultation to help customers select the right tool geometry, material grade, and heat-treatment specifications for each application, including stainless steel, carbon steel, aluminum, galvanized steel, and other specialized sheet-metal materials. With fast delivery, synchronized supply capability, and on-site technical support, we help manufacturers maintain continuous, efficient production.
By simply providing the technical drawing of your part, our engineering team will support the entire process:
- Analyze material type, thickness, and sheet characteristics
- Identify the most suitable punching method: Punching, Cutting, Forming, or Marking
- Recommend the optimal punch and die configuration based on geometry, productivity, and quality requirements
- Advise on solutions to extend tool life and improve operational efficiency
- Accompany you from tool selection through supply and technical support to ensure reliable performance

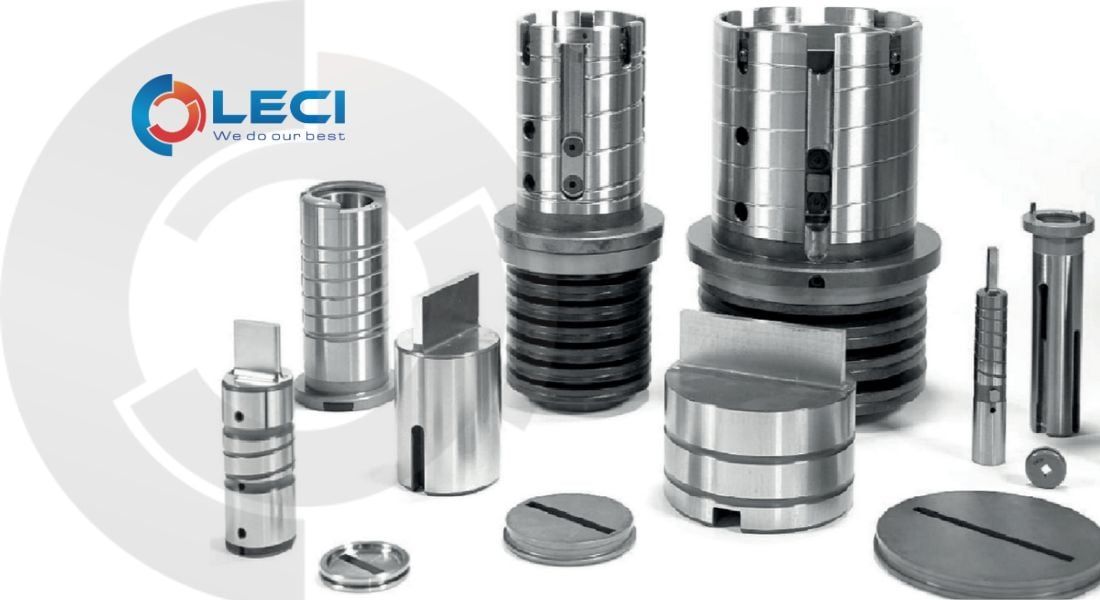

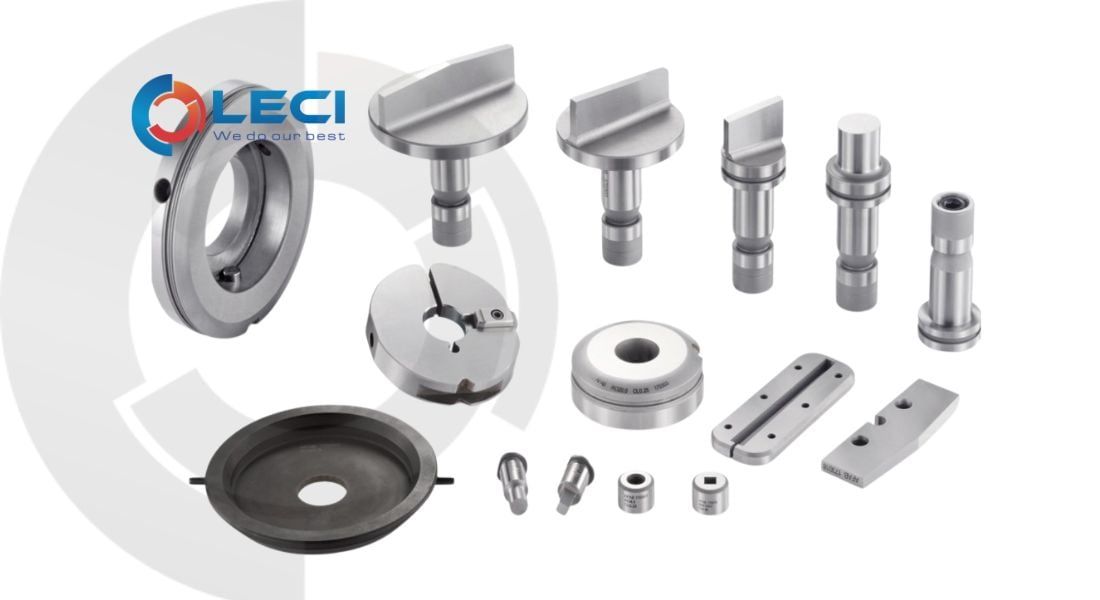

Types of Punching Tools for TRUMPF CNC Machines
With extensive hands-on experience in sheet-metal fabrication and deep expertise in TRUMPF tooling standards, LECI provides tailored consulting and optimized punching-tool solutions for every specific production requirement.
Punching tools for TRUMPF machines are developed in multiple tool categories, meeting a wide range of sheet-metal fabrication needs—from basic operations to complex geometries. The main groups include:

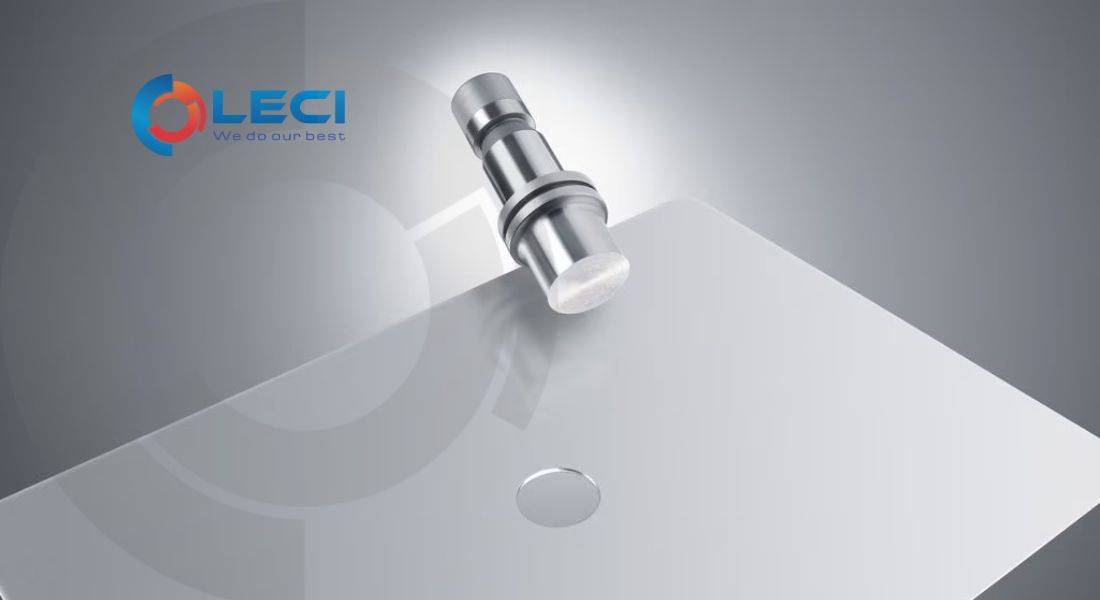

Punching Tools (Standard Punching Tools)
Standard punching is the most fundamental punching process, using a punch to create holes or simple shapes in the metal sheet. When the punch descends, the material within the cutting zone is completely sheared from the sheet. This method offers high productivity and is ideal for standard shapes such as round, square, rectangular, or oval profiles.
Applications of TRUMPF Punching Tools:
- Fast and precise hole punching
- Standard shape punching
- High-speed repetitive operations
Standard Punch Pattern

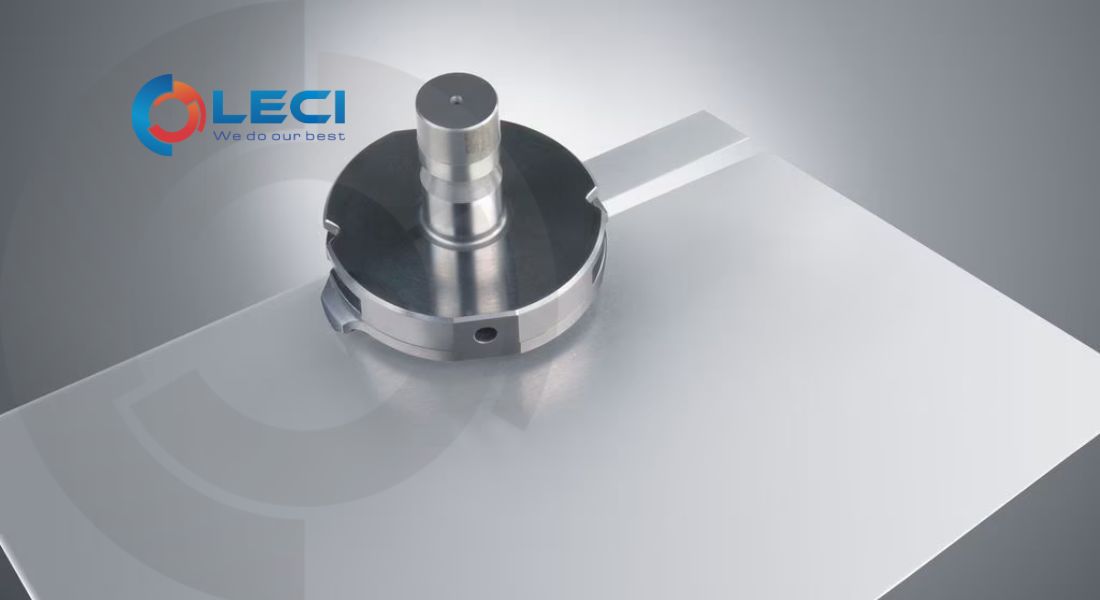

Cutting Tools / Nibbling Tools
Cutting is a punching method that uses the punching tool to remove material along a continuous cutting path. This process typically involves multiple sequential punching steps to form a free contour. It allows partial or complete separation of a part from the sheet without the need for a laser cutting system.
Detailed Applications:
- Creating curved or zig-zag cutting paths
- Producing freeform contours for non-standard shapes
- Ideal when a dedicated punch for the desired geometry is not available
- Expanding or fine-tuning edges of a part
- Separating components from the sheet in a single punching sequence
- Forming long contours, large-radius curves, or extended edges
- Ensuring smoother cut surfaces compared to basic nibbling
- Serving as an alternative to laser cutting when medium-to-high accuracy is required
Practical Use Cases:
- Contour cutting on sheet-metal parts
- Producing complex or irregular geometries
- Fully separating components from the parent sheet
Cutting Tool Pattern

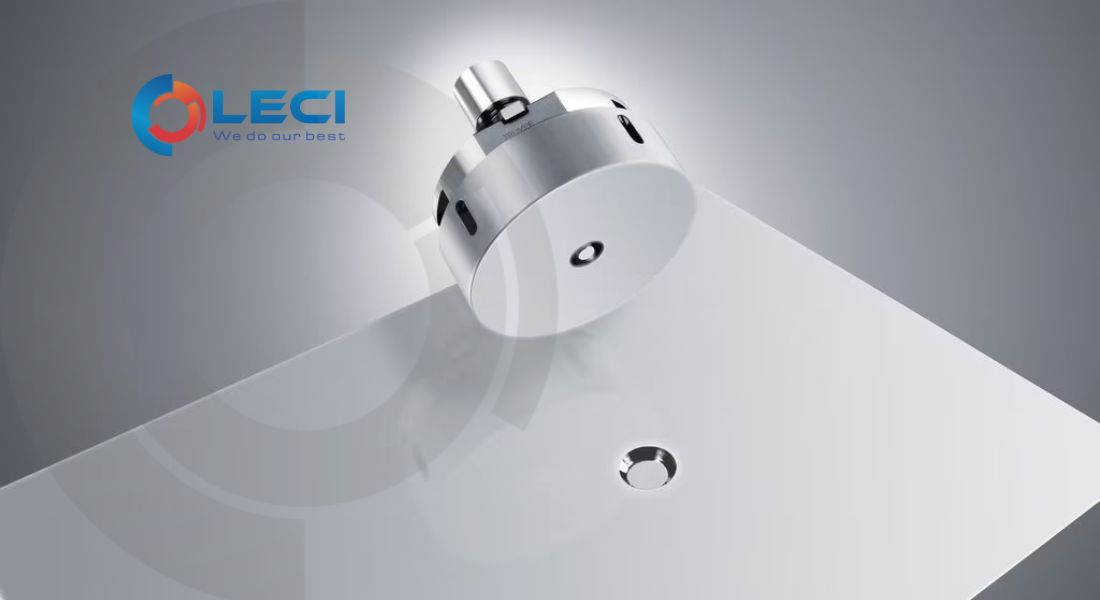

Forming Tools
Forming tools are designed to plastically deform the material, creating raised or recessed features on the sheet surface without removing any material. This method is used to produce stiffening ribs, offsets, louvers, embossing features, cable pass-throughs, and other specialized technical geometries on sheet-metal parts.
Applications of Forming Tools:
- Creating stiffening ribs to enhance structural rigidity
- Producing ventilation louvers
- Embossing for decoration or position marking
- Forming offsets or raised edges for assembly or fastening
Forming Tool Pattern

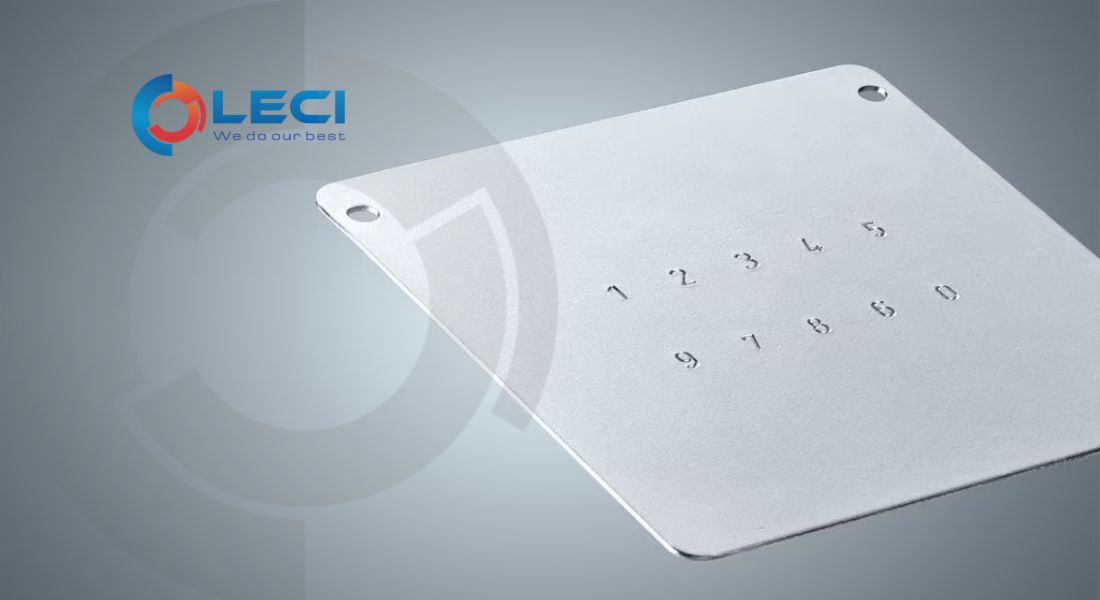

Marking Tools
Marking tools are specialized punches used to create characters, logos, or identification marks on the metal surface by forming a shallow indentation without damaging the sheet structure. This mechanical marking method is fast, stable, and ideal for part identification and traceability.
Applications:
- Serial number or product code marking
- Stamping logos or technical symbols
- Creating reference marks for assembly positioning
Marking Tool Pattern
In addition to supplying punching tools, LECI also provides maintenance and repair services for TRUMPF punching machines, helping manufacturers maintain stable operation and minimize downtime. Our technical team has deep expertise in the mechanical, electrical, and hydraulic systems of TRUMPF machines, and is ready to resolve issues such as punching inaccuracies, component wear, sensor malfunctions, axis errors, clamping-system faults, controller issues, and drivetrain failures. LECI is committed to delivering fast, precise, and reliable technical solutions to ensure your production line operates safely and efficiently at all times.
Contact infomation:
LECI Co., Ltd
R-1901, Saigon Trade Center Bld, 37 Ton Duc Thang Str., Ben Nghe W., Dist. 1, HCM City 70000, VN.
Long Bien, Ha Noi, VN.
Phone: (+84) 901442689 (WhatsApp)
Hotline: 02822202988
Website: lecilaser.com
