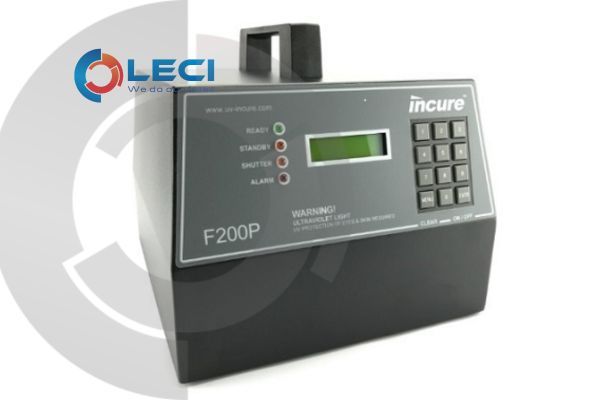

The F100P / F200P are programmable UV flood curing systems that integrate all electrical and optical components into a compact lamp head. Designed for easy factory-floor mounting without remote control boxes or extra cabling, they offer highly consistent curing via a 600 Watt Metal Halide arc lamp and parabolic reflector, illuminating an area of at least 8 x 6 inches with 200 mW/cm² UVA intensity (320–390nm).
Featuring a retractable shutter, LCD display, digital keypad, and timing/standby controls, these systems allow users to automate and repeat curing cycles safely and accurately.
Features
- Fully integrated system – no remote boxes or cabling
- Motorized shade-type shutter protects users from UV radiation
- LCD display & digital keypad – easy programming and monitoring
- Programmable exposure time, lamp power control, standby mode
- Ideal for R&D labs, production lines, or on-demand UV curing
Specifications
| Parameter | Value |
| Model | F100P / F200P |
| Order Number | 290007 |
| Input Voltage | 90–132VAC / 180–265VAC |
| Input Current | 10A @120V, 5.0A @240V |
| Frequency | 47 – 63 Hz |
| Lamp Power Control | ±1% |
| Auxiliary Voltage | 24V |
| Lamp Type | 600 Watt Metal Halide |
| Orientation | Horizontal |
| Radiation Flux | 110 Watts |
| Warm-Up Time | 2 minutes |
| Cooling Time (Restart) | 5 minutes typical |
| Curing Area | ≥ 8 x 6 inches (203 x 152 mm) |
| Lamp Life | ~1000 hours typical |
| Operating Temp | +10°C to +40°C / +50°F to +104°F |
| Relative Humidity | 30–75% operating, 10–100% storage |
| Cooling | Forced air |
| Dimensions (L × W × H) | 11” x 10” x 9” (~280 x 254 x 229 mm) |
| Weight | 15 lbs (~6.8 kg) |
