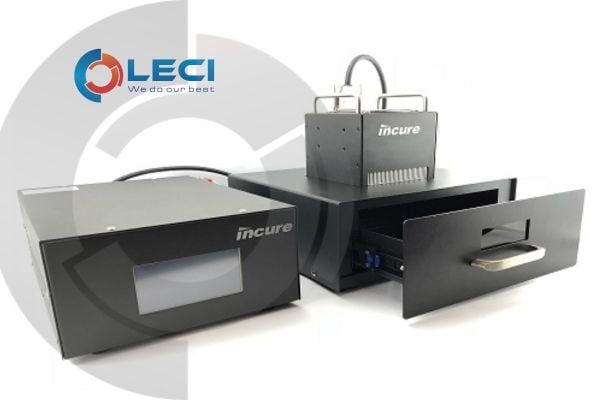

The UV Led flood lamp L1044 delivers exceptional curing power over a wide 4” × 4” area, powered by 144 high-performance UV LEDs. With peak intensity reaching up to 2,540 mW/cm², the L1044 sets a new standard in its class – perfect for both stand-alone use in benchtop setups and inline integration with systems like the Incure C9000™ conveyor.
The system supports programmable curing modes via LCD panel, foot switch activation, and PLC control, making it an excellent choice for industrial curing of UV adhesives, coatings, and inks.
Features
- Extremely high intensity: Up to 2,540 mW/cm² at 1" working distance
- Large uniform curing area: 4” x 4” (100 x 100 mm)
- 144 high-power UV LEDs: Consistent and even energy distribution
- Wavelength options: 365 nm, 395 nm, or 405 nm
- Fully programmable: LCD panel with adjustable time and intensity
- Long LED lifetime: Over 20,000 hours – no bulb replacements
- Multi-mode activation: Manual, footswitch, or PLC input
- Efficient forced-air cooling for thermal stability
Specifications
Specification | Value |
Model | L1044-365 / L1044-395 / L1044-405 |
Lamp Type | UV LED Flood Lamp |
Peak Intensity | Distance from Lamp Base 1.0 - 2,540 mW/cm² Distance from Lamp Base 1.5 - 2,420 mW/cm² Distance from Lamp Base 2.0 - 2,370 mW/cm² Distance from Lamp Base 2.5 - 2,260 mW/cm² |
Wavelength Options | 365 / 395 / 405 nm |
Curing Area | 4" x 4" (100 x 100 mm) |
Working Distance | 1.5” - 3” |
Intensity Control | Yes (0–100%) |
LED Lifetime | > 20,000 hours |
Cooling System | Forced air with louvers |
Power Supply | 100–240VAC, 50/60Hz (Auto-ranging) |
Control Interface | LCD Programmable Panel, PLC, Foot Switch |
Lamp Head Dimensions | 5.1” x 5.1” x 6.3” |
Power Unit Dimensions | 13” x 5.1” x 9” |
Applications
- Curing UV adhesives or coatings over large areas
- Conformal coating for PCBs and optical components
- Ink curing in medical and precision parts
- Modular benchtop or inline production setup with conveyor
