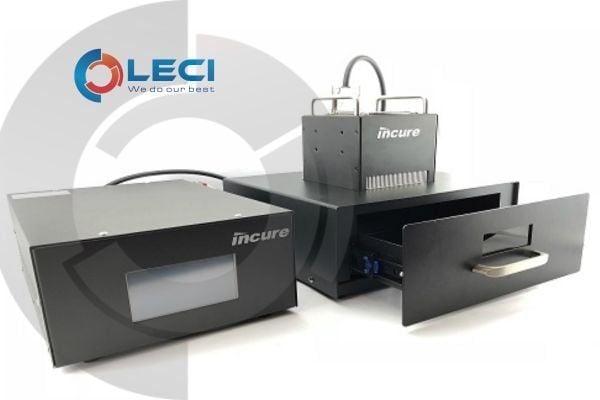

The L21212 UV LED Flood Lamp is Incure’s most powerful and wide-coverage UV curing solution, offering unmatched 12” × 12” curing area and driven by 144 high-intensity UV LEDs. With a peak intensity of 1,270 mW/cm² at 1”, the L21212 provides excellent curing efficiency per joule, ideal for demanding industrial UV applications.
Available in 365, 395, or 405 nm, the system supports LCD programmable control, and integrates easily with foot-switch or PLC. It is suitable for standalone UV chambers or high-volume production lines using C9000™ UV conveyors.
- Peak Intensity:
- 1,270 mW/cm² @1"
- 1,210 mW/cm² @1.5"
- 1,190 mW/cm² @2.0"
- 1,130 mW/cm² @2.5"
- 144 high-power LEDs for uniform and efficient exposure
- 12” × 12” large curing area – best in class
- Supports 365 / 395 / 405 nm wavelengths
- Adjustable intensity and curing time via LCD
- Supports PLC or foot-switch triggering
- Forced-air cooling system ensures thermal stability
- >20,000 hour LED life with only 20% degradation
- Height-adjustable UV curing box (1.75" to 9.0")
- Optional interlock safety curing box – B500 model
Specifications
| Parameter | Value |
| Model | L21212-365 / L21212-395 / L21212-405 |
| Lamp Type | UV LED Flood |
| Curing Area | 12” × 12” (305 x 305 mm) |
| Wavelengths | 365 / 395 / 405 nm |
| Working Distance | 1.5” – 3” |
| Cooling Method | Forced Air with Louvers |
| Power Input | 100–240V, 50/60Hz (Auto-Ranging) |
| External Control | LCD Programmable Panel, PLC, Foot Switch |
| Adjustable Curing Box Height | 1.75” / 3.5” / 5.25” / 7.0” / 9.0” |
| Lamp Dimensions | 18” × 23” × 8” |
