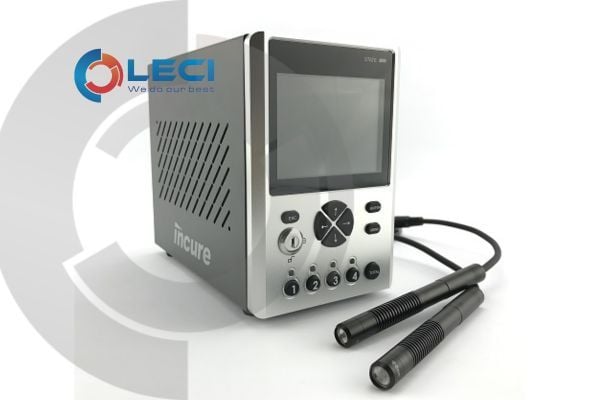

The UV LED Spot Lamp L9000 is a compact yet powerful UV LED spot curing lamp, ideal for high-precision bonding and curing in electronics, medical device manufacturing, R&D laboratories, and optical industries. It supports up to four LED lightguides, each controllable independently, offering flexibility and efficiency in multi-point UV curing.
With instant - on LED emission and uniform radiation up to 7,500 mW/cm², the L9000 dramatically reduces cure time while improving process quality. Its long-life UV LED source exceeds 20,000 hours, eliminating the need for bulb replacements and minimizing maintenance.
Features
- Ultra-high intensity: Up to 7,500 mW/cm² (with 3mm spot guide)
- Instant UV output: No warm-up time required
- Multiple wavelengths available: 365, 375, 385, 395, 405 nm
- Connect up to 4 lightguides: Each channel independently controlled
- Cool Cure capability (0–50°C) for temperature-sensitive materials
- Adjustable power output (0–100%) and timer (0.1 – 999.9 sec)
- Compact & lightweight: Only 180 × 100 × 140.5 mm, ~1.7 kg
- Long lifetime UV LED source: >20,000 hours – no bulb change needed
Specifications:
| Specification | Value |
| Model | L9000 |
| Wavelength Options | 365 / 375 / 385 / 395 / 405 nm |
| Supported Lightguides | 1 to 4 |
| Spot Sizes (mm) | 3 / 4 / 6 / 8 / 10 / 12 |
| Max Intensity | Up to 7,500 mW/cm² (3mm spot) |

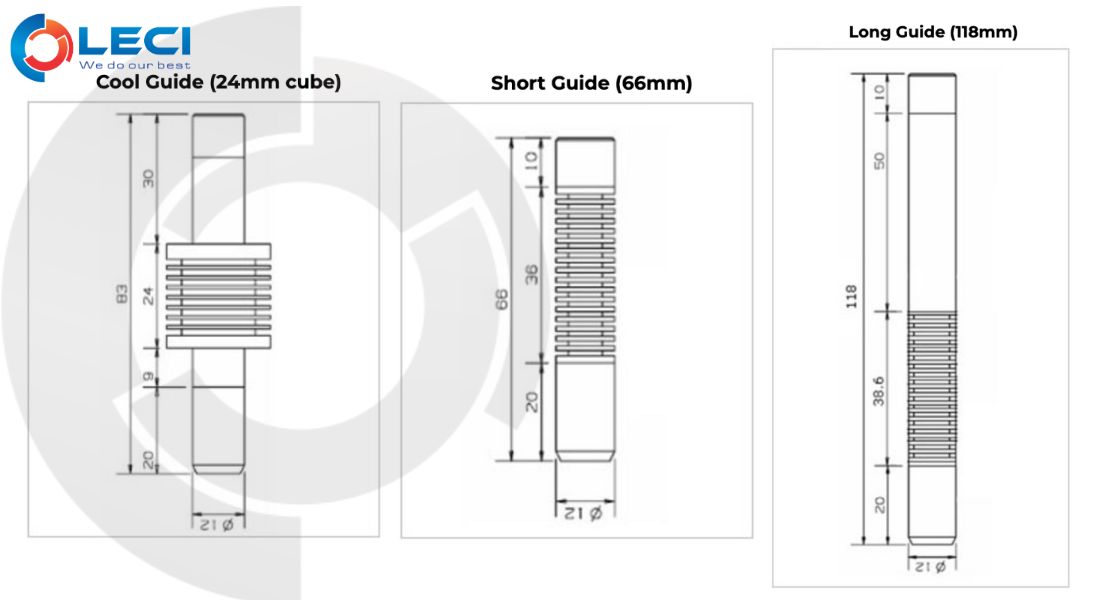

| Lightguide Options | Cool (24mm), Short (66mm), Long (118mm) |
| Timer Range | 0.1 to 999.9 seconds |
| Adjustable Power Output | 0 to 100% |
| Interface | RS-232 |
| Input Voltage | 100–240 VAC |
| Cooling | Fan (Cool guide) or Natural (Short/Long) |
| Dimensions (L×W×H) | 180 × 100 × 140.5 mm |
| Weight | Approx. 1.7 kg |
Applications
- Electronics: UV curing adhesives on PCBs, sensors, fiber optics
- Medical: Bonding for catheter hubs, bio-sensors, disposable devices
- Lab & R&D: Fast prototyping, UV reaction testing, micro-assembly
- Optics & Precision Assembly: Lens bonding, laser module sealing
Benefits of the L9000 System
- Cleaner and safer alternative to mercury lamps – no IR heat or toxic fumes
- Fast and consistent curing with uniform UV LED intensity
- Scalable with up to 4 curing heads – ideal for inline production or multi-station labs
- Long-term savings with no bulb replacement and minimal maintenance
