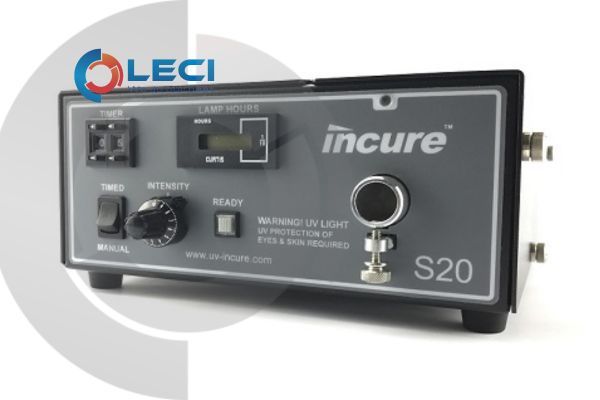

UV spot curing lamp S20 by Incure is a next-generation compact curing system designed for high-precision applications in electronics assembly, medical device production, and R&D labs. With output intensity exceeding 21W/cm² at the tip of the light guide and a typical lamp life of over 2,000 hours, the S20 delivers unmatched value and performance in its size class.
Key features
- Ultra-high UV intensity >21W/cm² for rapid curing of adhesives and coatings.
- Adjustable lamp output (25–100%) with smooth rotary knob control.
- Integrated lamp hour meter for real-time usage tracking.
- Built-in 1–99 second timer, supports both manual and timed operation.
- Safety interlock system prevents UV exposure when open or disconnected.
- Extremely compact footprint, ideal for lab benches or tight integration.
- Long lamp life >2,000 hours, minimizing replacement frequency.
- Dual filtered DC fan cooling with automatic over-temperature shutdown
| Specification | Value |
| Order Number | 290028 / 290029 |
| AC Input Voltage | 100–120VAC or 200–240VAC ±10% |
| Max Input Current | 2.5 – 4.7 Amperes |
| Frequency Range | 47 – 63 Hz |
| Lamp Type | 200 Watt Mercury |
| Output Intensity (typical) | >21W/cm² |
| Wavelength Range | 275 – 650 nm |
| Lamp Life (typical) | >2,000 hours |
| Dimensions (L×W×H) | 10.51 × 8.64 × 4.05 |
| Weight | 5.92 lbs (2.7 kg) |
| Lamp Orientation | Horizontal |
| Cooling | Dual filtered DC fans |
| Relative Humidity | 30–75% operating / 10–100% storage |
| Operating Temperature | +10°C to +40°C |
| Over-temperature Shutdown | Internal at 65°C |
Applications
- Electronics: precision UV curing of connectors, PCBs, sensors.
- Medical: bonding catheters, UV-reactive materials, optical parts.
- Laboratory: photochemical research, curing test samples.
- Art, dental & small-part manufacturing: detailed UV bonding & surface finishing.
Benefits of Using S20 UV Lamp
- Drastically reduced curing times and higher production efficiency.
- Consistent curing performance across repeated cycles.
- Reliable thermal management and integrated safety mechanisms.
- Ideal combination of power, precision and portability in one system.
